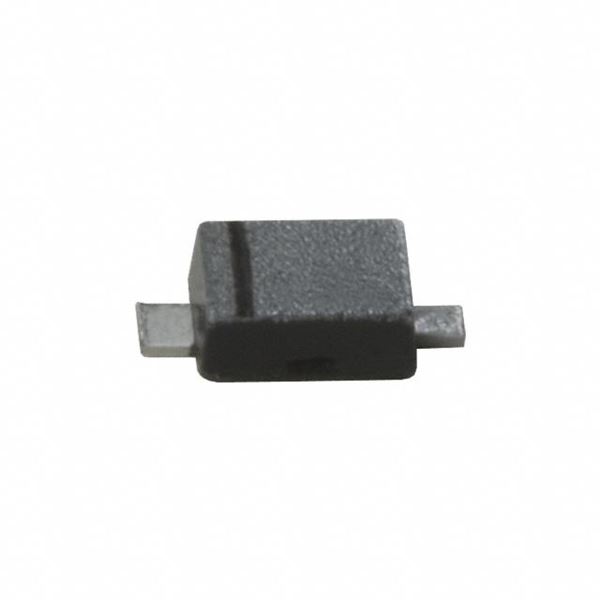

MA2J72900L Panasonic
Same model may have multiple batches, images only for reference.

MA2J72900L

Part No MA2J72900L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SMINI2
Datasheet
MA2J72900L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 200mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 50μA @ 30V
Capacitance @ Vr, F 30pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 106844-MA2J72900L
Ultra Librarian 3D Model Ultra Librarian MA2J72900L CAD Model

Description

The Panasonic Electronic Components MA2J72900L is a Schottky diode designed for use in various applications such as mobile phones, digital cameras, and portable media players. It has the following specifications:

  • Maximum Reverse Voltage: 30V
  • Forward Voltage: 550mV @ 200mA
  • Capacitance: 30pF @ 0V, 1MHz
  • Reverse Recovery Time: 3ns
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Use: Discrete semiconductor products
