Same model may have multiple batches, images only for reference.

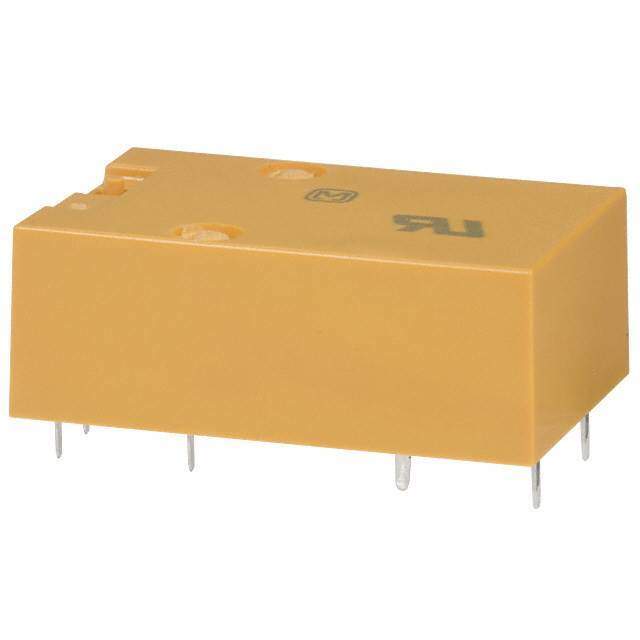

NF2EB-48V Real Image
Same model may have multiple batches, images only for reference.

NF2EB-48V

Part No NF2EB-48V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 48V
Datasheet
NF2EB-48V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 11.45mA
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VAC, 220VDC - Max
Turn On Voltage (Max) 38.4 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 15ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 330 mW
Coil Resistance 7 kOhms
Temperature Range - Operating -40°C to 65°C
Win Source Part Number 143913-NF2EB-48V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NF2EB-48V CAD Model

Description

The Panasonic Electric Works Relay is a general purpose non-latching DPDT (2 Form C) relay with a coil voltage of 48VDC.

  • Relay Type: general purpose non-latching
  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 48VDC
  • Coil Resistance: 7 kOhms
  • Coil Current: 11.45mA
  • Contact Rating: 2A
  • Switching Voltage: up to 220VAC or 220VDC
  • Operate Time: 15ms
  • Release Time: 10ms
  • Mounting Style: through hole
  • Termination Style: PC pin
  • Switching Voltage: 220VAC or 220VDC
  • Turn On Voltage: 38.4VDC
  • Turn Off Voltage: 4.8VDC
  • Coil Power: 330mW
  • Operating Temperature: -40°C to 65°C
  • Package: tube/rail
  • Status: obsolete (EOL)
