Same model may have multiple batches, images only for reference.

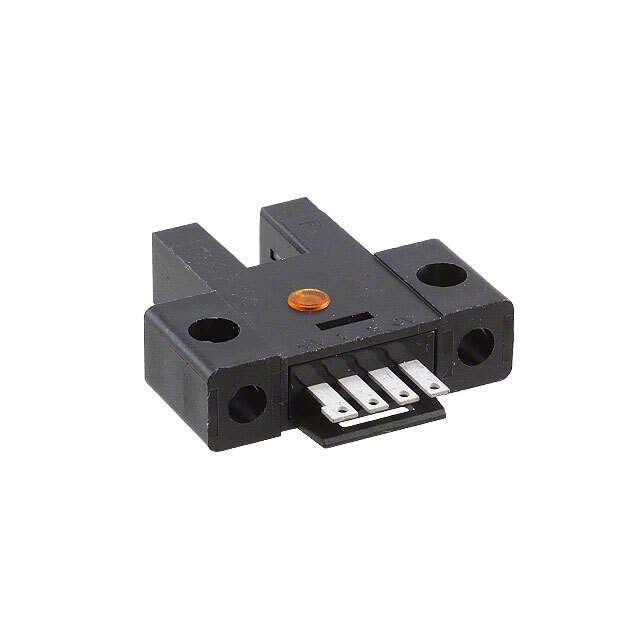

PM-K54 Real Image
Same model may have multiple batches, images only for reference.

PM-K54

Part No PM-K54
Manufacturer Panasonic
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR PHOTO 5MM 5-24VDC NPN / Photoelectric Sensor Light ON/Dark ON NPN Open Collector 0.005m 4-Pin
Datasheet
PM-K54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Panasonic Industrial Automation Sales
Series PM-54
Packaging Bulk
Part Status Obsolete(EOL)
Sensing Distance 0.197" (5mm)
Sensing Method Transmissive
Output Configuration NPN - Dark-ON/Light-ON - Selectable
Current - DC Forward (If) (Maximum) 50mA
Current - Collector (Ic) (Maximum) 15mA
Voltage - Collector Emitter Breakdown (Maximum) 30V
Response Time 20μs
Operating Temperature Range -25°C ~ 55°C
Mounting Chassis Mount
Package Module, Wire Leads, Slot Type
Type Unamplified
Win Source Part Number 792432-PM-K54
Popularity Medium
Supply and Demand Status Limited
Family Name PM-K54
Introduction Date April 25, 2000
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PM-K54 CAD Model

Description

The PM-K54 transmissive sensing method module is manufactured by Panasonic Industrial Automation Sales.

  • Sensing Distance: 0.197 inches (5mm)
  • Output Configuration: NPN - Dark-ON/Light-ON - Selectable
  • Response Time: 20μs
  • Mounting: Chassis Mount
  • Maximum Collector Current: 15mA
  • Family Name: PM-K54
  • Operating Temperature: -25℃ to 55℃
  • Status: Obsolete (EOL)
