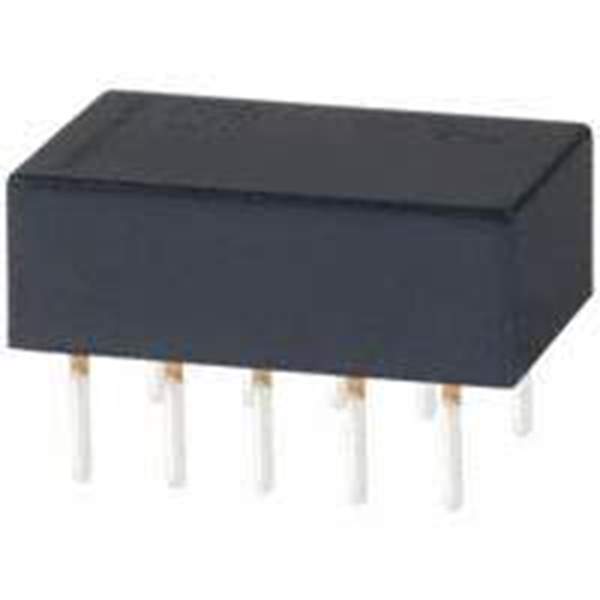

TQ2H-24V

Name: TQ2H-24V
Brand: Panasonic
SKU: 380349
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TQ2H-24V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 1A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tube/Rail
Status	Active
Relay Type	Telecom
Coil Type	Non Latching
Coil Current	8.3mA
Coil Voltage	24VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1A
Switching Voltage	125VAC, 110VDC - Max
Turn On Voltage (Max)	18 VDC
Turn Off Voltage (Min)	2.4 VDC
Operate Time	3ms
Release Time	3ms
Mounting	Through Hole
Termination Style	PC Pin
Coil Power	200 mW
Coil Resistance	2.88 kOhms
Temperature Range - Operating	-40°C to 70°C
Win Source Part Number	213468-TQ2H-24V
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	50
Ultra Librarian 3D Model	Ultra Librarian TQ2H-24V CAD Model

Alternative Products

Description

The Panasonic Electric Works TQ2H-24V is a DPDT (2 Form C) telecom relay with a contact rating (current) of 1A and a switching voltage of 125VAC, 110VDC - Max.

Contact Rating (Current): 1A
Switching Voltage: 125VAC, 110VDC - Max
Coil Voltage: 24VDC
Coil Resistance: 2.88 kOhms
Turn On Voltage (Max): 18 VDC
Turn Off Voltage (Min): 2.4 VDC
Mounting: Through hole
Coil Current: 8.3mA
Release Time: 3ms
Operate Time: 3ms
Category: Relays
Packaging: Tube/Rail
Supply and Demand Status: Limited
Pieces per Package: 50
