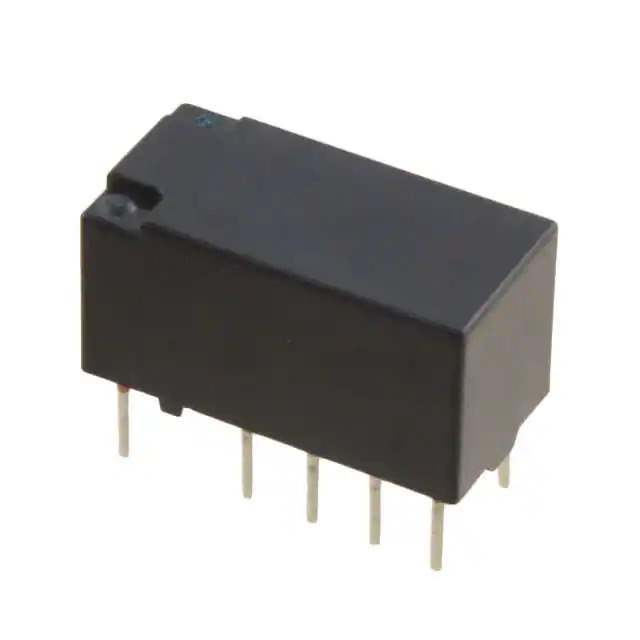

TX2-LT-3V-TH Real Image
Same model may have multiple batches, images only for reference.

TX2-LT-3V-TH

Part No TX2-LT-3V-TH
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GENERAL PURPOSE DPDT 2A 3V / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series TX-TH
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 46.7 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.25 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 64.3 Ohms
Base Product Number TX2-L
Standard Package 40 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 901585-TX2-LT-3V-TH
Ultra Librarian 3D Model Ultra Librarian TX2-LT-3V-TH CAD Model

Description

The Panasonic TX2-LT-3V-TH is a signal relay suitable for various electronic applications from Panasonic.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2A
  • Coil Voltage: 3VDC
  • Coil Resistance: 64.3 Ohms
  • Switching Voltage (AC): 250VAC
  • Switching Voltage (DC): 220VDC
  • Coil Current: 46.7 mA
  • Operate Time: 4 ms
  • Relay Type: Latching
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Construction: Sealed
