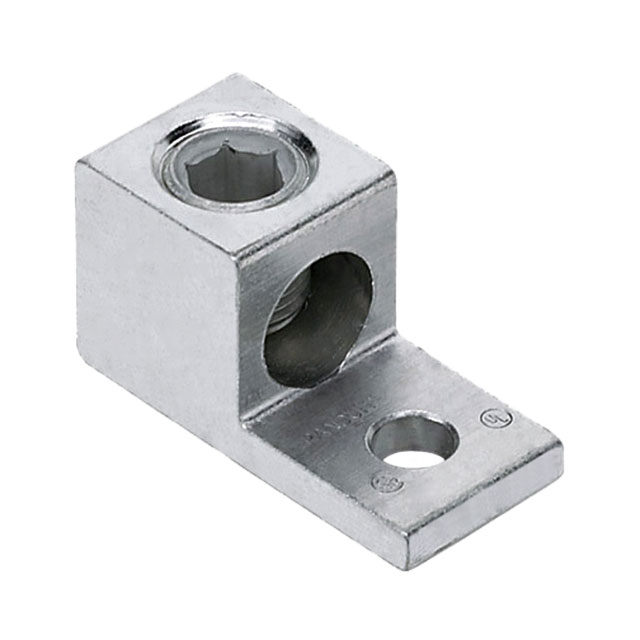

MA3005 Panduit Corp
Same model may have multiple batches, images only for reference.

MA3005

Part No MA3005
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT LUG 6 AWG #5/16
Datasheet
MA3005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Packaging Bulk
Status Active
Terminal Type Lug, Grounding
Stud/Tab Size 5/16 Stud
Terminal Style Single Stud Hole
Tab Thickness 0.250" (6.35mm)
Length - Overall 2.000" (50.80mm)
Width - Outer Edges 1.130" (28.70mm)
Mounting Free Hanging (In-Line)
Termination Screw
Wire Gauge 300 MCM (kcmil)-6 AWG
Insulation Non-Insulated
Features With Screw
Contact Finish Tin
Win Source Part Number 207225-MA3005
Ultra Librarian 3D Model Ultra Librarian MA3005 CAD Model

Description

The Panduit Corp 207225-MA3005 is a connector with grounding capabilities.

  • Packaging: Bulk
  • Termination: Screw
  • Contact Finish: Tin
  • Wire Gauge: 300 MCM (kcmil)-6 AWG
  • Mounting Style: Free Hanging (In-line)
  • Terminal Type: Lug
  • Width: 1.130 inches (28.70mm)
  • Length: 2.000 inches (50.80mm)
  • Manufacturer: Panduit Corp
  • Status: Active
