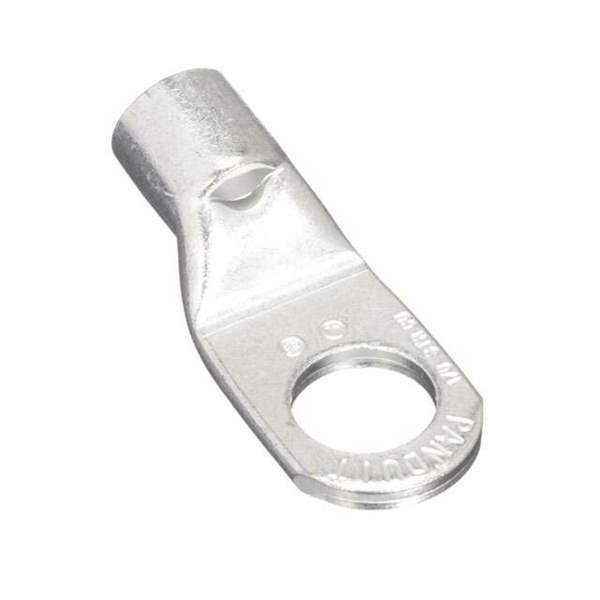

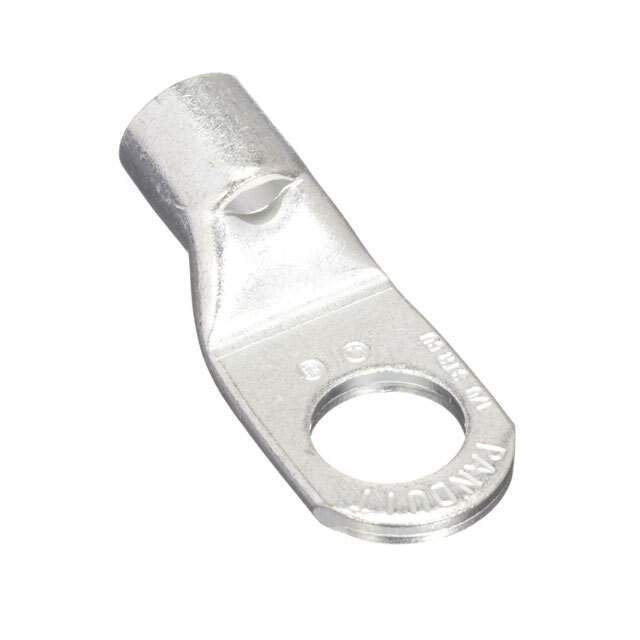

S1/0-56R-X Real Image
Same model may have multiple batches, images only for reference.

S1/0-56R-X

Part No S1/0-56R-X
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S1/0-56R-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 5/16 Stud
Thickness 0.120" (3.05mm)
Width - Outer Edges 0.760" (19.30mm)
Length - Overall 1.900" (48.26mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 1/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S1/0
Other Names S1/0-56R-X,298-15765
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285152-S1/0-56R-X
Ultra Librarian 3D Model Ultra Librarian S1/0-56R-X CAD Model

Description

The Panduit Corp S1/0-56R-X is a connector terminal with a crimp and funnel opening termination.

  • Termination: Crimp and Funnel Opening
  • Contact Finish: Tin
  • Contact Material: Copper
  • Terminal Type: Flat-Sided
  • Insulation: Non-Insulated
  • Wire Gauge: 1/0 AWG
  • Stud/Tab Size: 5/16 Stud
  • Package: Bulk
  • Standard Package: 10
  • Thickness: 0.120" (3.05mm)
  • Width: 0.760" (19.30mm)
  • Length: 1.900" (48.26mm)
