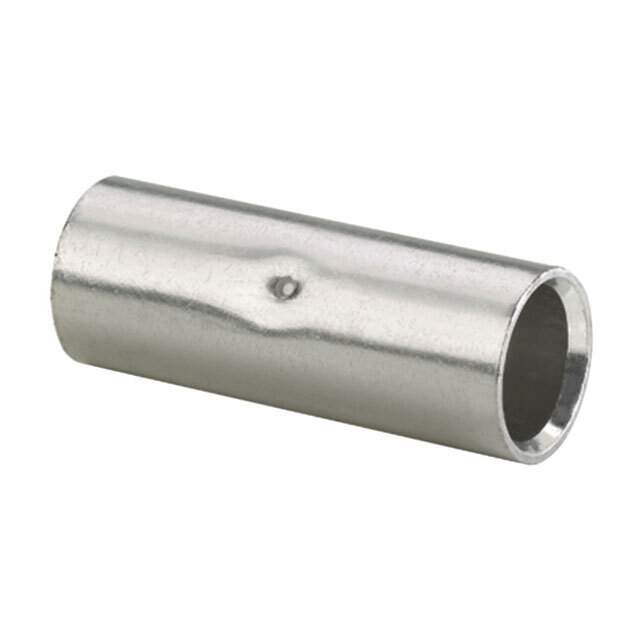

SCMS500-6 Real Image
Same model may have multiple batches, images only for reference.

SCMS500-6

Part No SCMS500-6
Manufacturer Panduit Corp
Catalog Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire Splice Connectors
Mfr Panduit Corp
Package Bulk
Product Status Obsolete
Terminal Type Butt Splice, Inline, Individual Openings
Number of Wire Entries 2
Termination Crimp
Wire Gauge 500mm²
Insulation Non-Insulated
Base Product Number SCMS
Other Names -3255-SCMS500-6,07498377533
Standard Package 6
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285096-SCMS500-6
Ultra Librarian 3D Model Ultra Librarian SCMS500-6 CAD Model

Description

This Panduit Corp non-insulated butt splice connector is designed for use in wire splice connections.

  • Manufacturer: Panduit Corp
  • Insulation: non-insulated
  • Type: butt splice connector
  • Design: individual openings
  • Termination: crimped
  • Wire Gauge: 500mm²
  • Wire Entries: two
  • Packaging: bulk
  • Standard Package: 6 pieces
  • ECCN: EAR99 compliant
  • REACH: unaffected
  • HTSUS Code: 8536.90.4000
  • Base Product Number: SCMS
  • Status: obsolete
