Same model may have multiple batches, images only for reference.

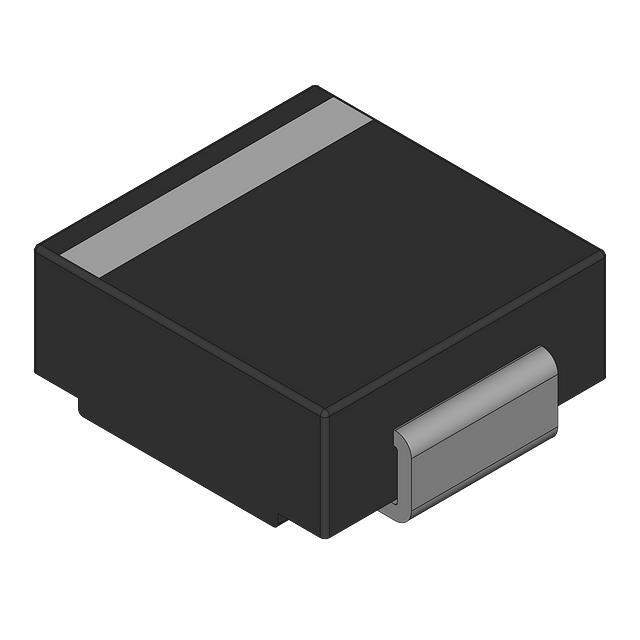

1SMA5922-AU_R1_000A1 Real Image
Same model may have multiple batches, images only for reference.

1SMA5922-AU_R1_000A1

Part No 1SMA5922-AU_R1_000A1
Manufacturer Panjit
Catalog Diodes - Zener - Single
Description SILICON ZENER DIODE / Zener Diode 7.5 V 1.5 W ±5% Surface Mount SMA (DO-214AC)
Datasheet
1SMA5922-AU_R1_000A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panjit International Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 7.5 V
Tolerance ±5%
Power - Max 1.5 W
Impedance (Max) (Zzt) 3 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 6 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names 3757-1SMA5922-AU_R1_000A1DKR,3757-1SMA5922-AU_R1_000A1CT,3757-1SMA5922-AU_R1_000A1TR
Standard Package 1,800
Win Source Part Number 971441-1SMA5922-AU_R1_000A1
Ultra Librarian 3D Model Ultra Librarian 1SMA5922-AU_R1_000A1 CAD Model

Description

The Panjit electronic component with the Win Source part number 971441-1SMA5922-AU_R1_000A1 is a discrete semiconductor product that falls under the category of diodes - zener - single.

  • Series: automotive, AEC-Q101
  • Package: tape and reel
  • Standard Package: 1800
  • Mounting: SMD (SMT)
  • Tolerance: ±5%
  • Power-Max: 1.5W
  • Current-Reverse Leakage @ Vr: 5 µA @ 6V
  • Voltage-Zener (Nom) (Vz): 7.5V
  • Impedance (Max) (Zzt): 3 Ohms
  • Package/Case: DO-214AC, SMA
  • Supplier Device Package: SMA (DO-214AC)
  • Temperature Range for Operating: -55°C ~ 150°C (TJ)
  • ECCN: EAR99
  • HTSUS: 8541.10.0050
  • Other Names: 3757-1SMA5922-AU_R1_000A1DKR, 3757-1SMA5922-AU_R1_000A1CT, 3757-1SMA5922-AU_R1_000A1TR
