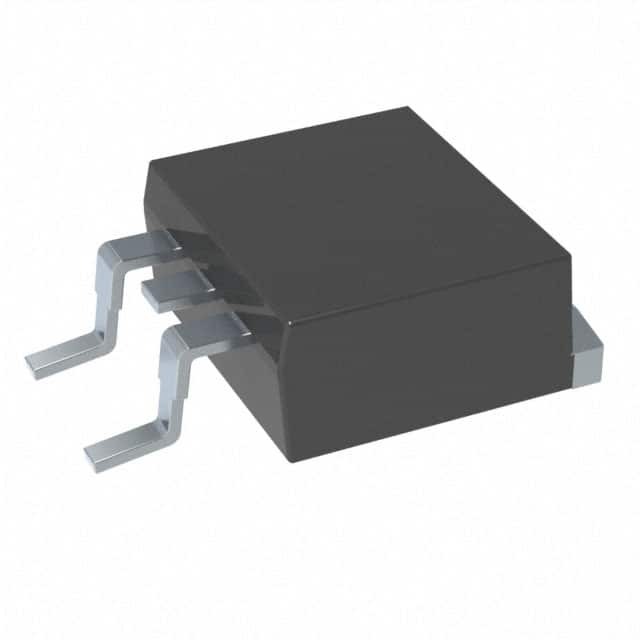

Part No MBR2045DC_R2_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description 20 AMPERS SCHOTTKY BARRIER RECTI  /  Diode Array 1 Pair Common Cathode Schottky 45 V 20A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Datasheet
MBR2045DC_R2_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Series MBR2040DC
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 45 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR2045DC_R2_00001CT,3757-MBR2045DC_R2_00001TR,3757-MBR2045DC_R2_00001DKR
Standard Package 800
Win Source Part Number 1076510-MBR2045DC_R2_00001
Ultra Librarian 3D Model Ultra Librarian MBR2045DC_R2_00001 CAD Model

Description

The MBR2040DC series by Panjit International Inc. is a fast recovery diode array that comes in a tape and reel packaging. The diode type is Schottky, with a voltage DC reverse (Vr) (Max) of 45V and a voltage forward (Vf) (Max) of 700 mV at 10A.

  • Current Average Rectified (Io) (per diode): 20A
  • Maximum Operating Temperature: -50°C to 150°C
  • Current Reverse Leakage: 50 µA @ 45V
  • Diode Configuration: 1 pair common cathode
  • Alternative Parts (Cross-Reference): not applicable
  • Status: currently active
