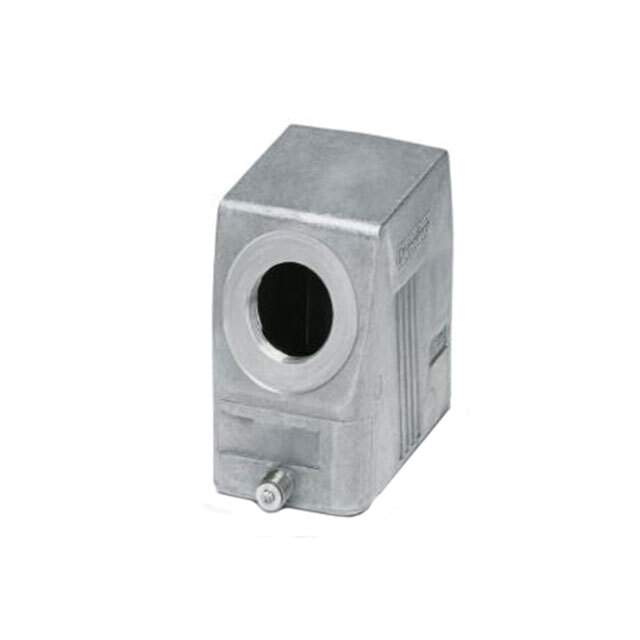

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr Phoenix Contact
Series HEAVYCON® B
Package Bulk
Product Status Active
Connector Type Hood
Style Side Entry
Size B10
Lock Location Locking Clip (1) on Base Bottom
Thread Size M25
Size / Dimension 2.874" L x 1.732" W x 2.835" H (73.00mm x 44.00mm x 72.00mm)
Features Salt Water Resistant
Ingress Protection IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Aluminum, Die Cast
Temperature Range - Operating -40°C ~ 125°C
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1199670-1412600
Ultra Librarian 3D Model Ultra Librarian 1412600 CAD Model

Description

The HEAVYCON B series heavy-duty connector housing is a rugged and durable solution for demanding industrial applications from HEAVYCON.

  • Size: 2.874" L x 1.732" W x 2.835" H (73.00mm x 44.00mm x 72.00mm)
  • Housing Material: Aluminum Die-Cast
  • Ingress Protection: IP66/IP67/IP69K
  • Connector Type: Hood
  • Entry Style: Side Entry
  • Thread Size: M25
  • Temperature Range: -40°C to 125°C
