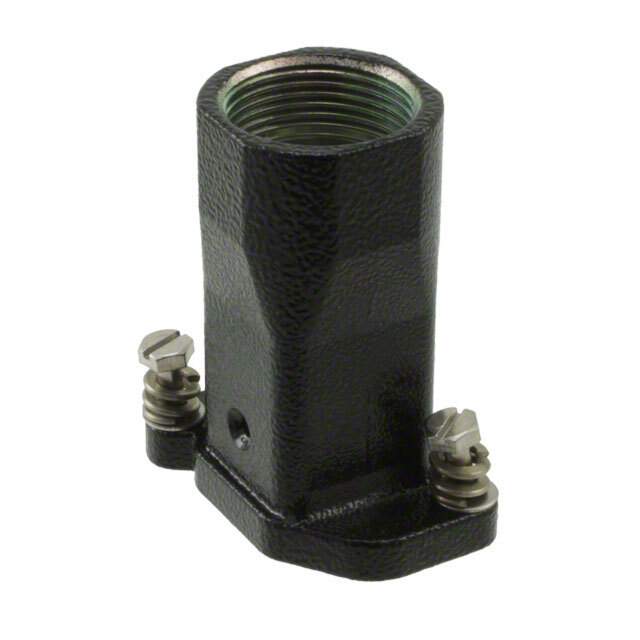

19407030411 Real Image1 19407030411 Real Image2
Same model may have multiple batches, images only for reference.
19407030411 Real Image1 19407030411 Real Image2
19407030411 Real Image1 19407030411 Real Image2
Same model may have multiple batches, images only for reference.

19407030411

Part No 19407030411
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD TOP ENTRY SZ3A M25 / Hood Connector Top Entry M25 3A IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® HPR
Package Bulk
Connector Type Hood
Style Top Entry
Size 3A
Lock Location Screw Locks on Hood
Thread Size M25
Size / Dimension 1.791" L x 1.276" W x 2.362" H (45.50mm x 32.40mm x 60.00mm)
Housing Color Black
Features -
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Zinc, Die Cast
Housing Finish Epoxy Powder Paint
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19407030
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380602-19407030411
Ultra Librarian 3D Model Ultra Librarian 19407030411 CAD Model

Description

The Han® HPR series is a heavy-duty connector housing designed for top entry applications.

  • Connector Type: Hood
  • Size: 1.791" L x 1.276" W x 2.362" H (45.50mm x 32.40mm x 60.00mm)
  • Housing Material: Zinc die-cast
  • Color: Black
  • Ingress Protection: IP65/IP68/IP69K
  • Housing Finish: Epoxy powder paint
  • Thread Size: M25
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: HARTING
