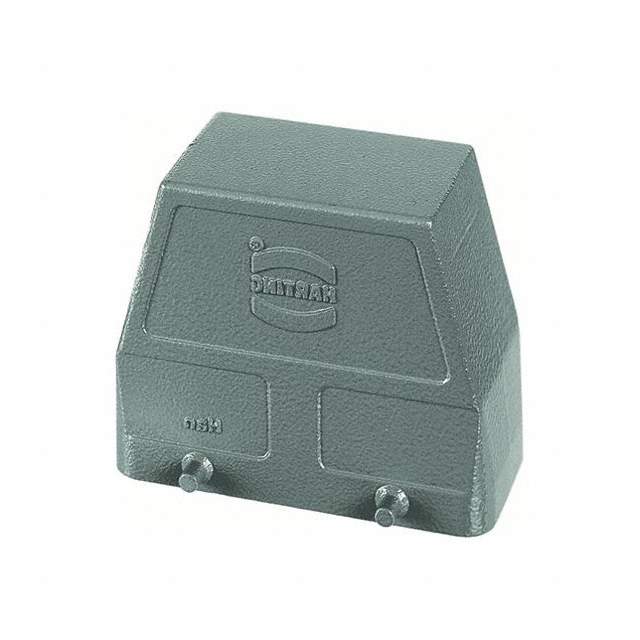

09300160521 Real Image1 09300160521 Real Image2
Same model may have multiple batches, images only for reference.
09300160521 Real Image1 09300160521 Real Image2
09300160521 Real Image1 09300160521 Real Image2
Same model may have multiple batches, images only for reference.

09300160521

Part No 09300160521
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD SIDE ENTRY SZ16B PG29 / Hood Connector Side Entry PG29 16B IP65 - Dust Tight, Water Resistant
Datasheet
09300160521 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Connector Type Hood
Style Side Entry
Size 16B
Lock Location Locking Clip (2) on Base Bottom
Thread Size PG29
Size / Dimension 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
Housing Color Gray
Features -
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 09300160
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380448-09300160521
Ultra Librarian 3D Model Ultra Librarian 09300160521 CAD Model

Description

The 1380448-09300160521 is a hood connector from HARTING's Han® B series.

  • Series: Han® B
  • Type: Hood
  • Entry Style: Side Entry
  • Ingress Protection: IP65
  • Material: Aluminum Die Cast
  • Housing Color: Gray
  • Size / Dimension: 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
  • Thread Size: PG29
  • Operating Temperature: -40°C ~ 125°C
  • Housing Finish: Powder Coated
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Manufacturer: HARTING
