Same model may have multiple batches, images only for reference.

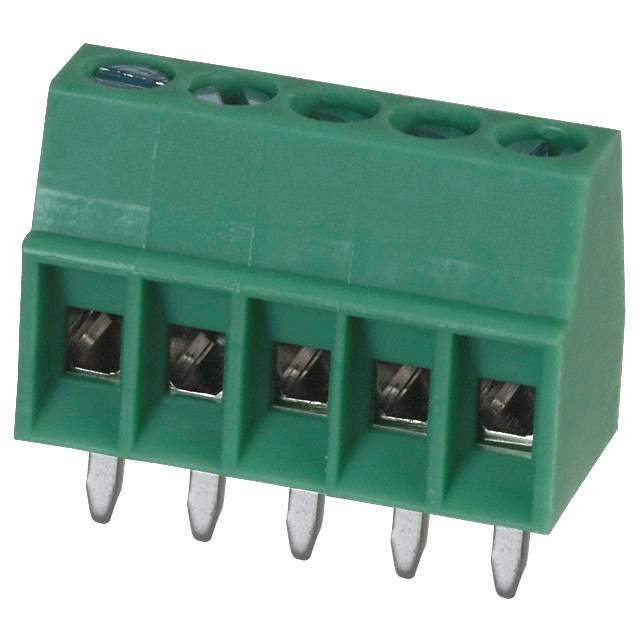

1725685 Real Image
Same model may have multiple batches, images only for reference.

1725685

Part No 1725685
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 5P SIDE ENT 2.54MM PCB / 5 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr Phoenix Contact
Series COMBICON MPT
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 5
Pitch 0.100" (2.54mm)
Mating Orientation Horizontal with Board
Current 6 A
Voltage 125 V
Wire Gauge 20-30 AWG
Mounting Type Through Hole
Wire Termination Screw
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 0.12-0.15 Nm (1.0-1.3 Lb-In)
Screw Thread M1.6
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905491-1725685
Ultra Librarian 3D Model Ultra Librarian 1725685 CAD Model

Description

The COMBICON MPT terminal block, with Win Source Part Number 905491-1725685, is a versatile connector designed for wire-to-board applications.

  • Series: COMBICON MPT
  • Connector Type: Terminal Block, Wire-to-Board
  • Positions per Level: 5
  • Pitch: 0.100" (2.54mm)
  • Housing Material: Polyamide (PA) and Nylon
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Mating Orientation: Horizontal
  • Wire Termination: Screw
  • Manufacturer: Phoenix Contact
  • Package Type: Bulk
  • Package Quantity: 250 pcs
