Same model may have multiple batches, images only for reference.

1767461

Get a Quote

Part No	1767461
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

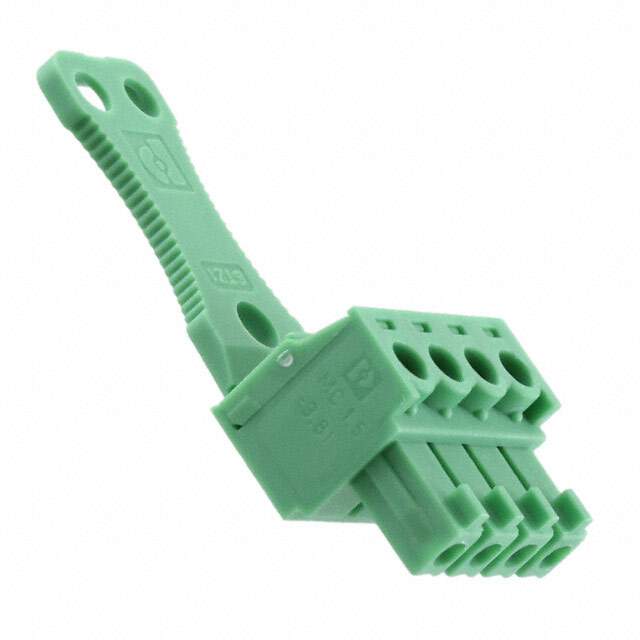

Description	TERM BLOCK PLUG 4POS STR 3.81MM / 4 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON MC
Package	Bulk
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm2	0.14-1.5mm²
Color	Green
Temperature Range - Operating	-
Contact Mating Finish	Tin
Features	Strain Relief
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	M2
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm
Contact Material	-
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	-
Insulation Height	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Standard Package	50 pcs
Win Source Part Number	1380571-1767461
Ultra Librarian 3D Model	Ultra Librarian 1767461 CAD Model

Alternative Products

Description

The 1197708 is a terminal block header from Phoenix Contact.

Series: COMBICON MC
Type: Plug with Female Sockets
Positions per Level: 4
Total Levels: 4
Pitch: 0.150" (3.81mm)
Plug Wire Entry: 180°
Termination Style: Screw Rising Cage Clamp
Current Rating: 8A
Voltage Rating: 320V (IEC) or 300V (UL)
Wire Gauge: 14 to 30 AWG (0.14-1.5mm²)
Color: Green
Feature: Strain Relief
