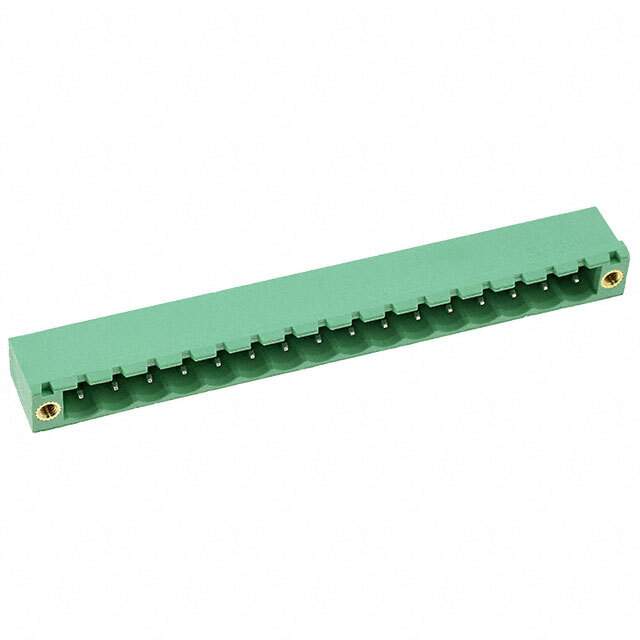

Same model may have multiple batches, images only for reference.

1776647

Name: 1776647
Brand: Phoenix Contact
SKU: 1334608
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1776647
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 16POS 5.08MM / 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet	1776647 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Positions Per Level	16
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	400 V
Current - UL	15 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.339" (8.61mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1776647-ND,277-10998,MSTB 2,5/16-GF-5,08,MSTB2,5/16-GF-5,08
Standard Package	50
Win Source Part Number	1334608-1776647
Ultra Librarian 3D Model	Ultra Librarian 1776647 CAD Model

Alternative Products

Description

Phoenix Contact's 1334608-1776647 is a connector component that is RoHS compliant.

Manufacturer: Phoenix Contact
Series: MSTB 2,5/16-GF-5,08
Type: Header, Male Pins, Shrouded (4 Side)
Number of Positions: 16
Positions per Level: 16
Number of Levels: 1
Pitch: 0.200" (5.
