Same model may have multiple batches, images only for reference.

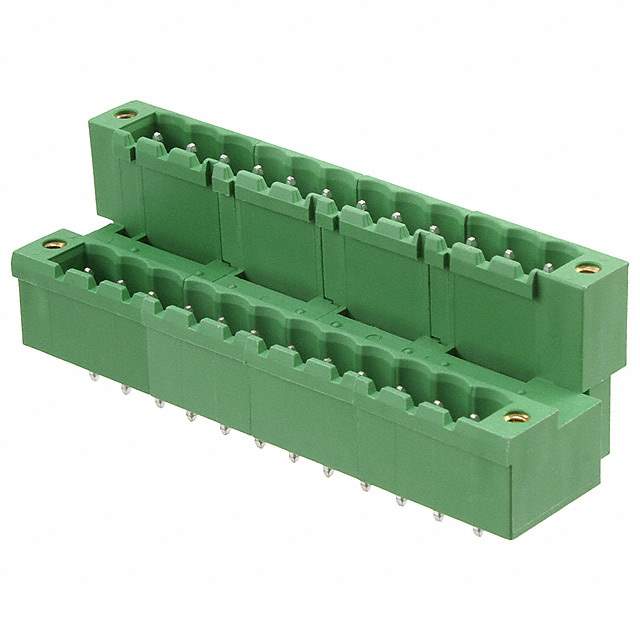

1845730 Real Image
Same model may have multiple batches, images only for reference.

1845730

Part No 1845730
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 24POS VERT 5.08MM / 24 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Positions Per Level 12
Number of Levels 2
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 10A
Voltage - IEC 400 V
Current - UL 12 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.870" (22.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MDSTBV2,5/12-GF-5.08,277-8895,1845730-ND,MDSTBV 2,5/12-GF-5.08
Standard Package 50
Win Source Part Number 1332922-1845730
Ultra Librarian 3D Model Ultra Librarian 1845730 CAD Model

Description

This vertical header male pin shrouded terminal block has 24 positions, with 12 positions per level and two levels.

  • Pitch: 0.200 inches (5.08mm)
  • Current: Up to 10A
  • Voltage: Up to 400V
  • Mounting: Through a hole
  • Termination: Solder termination style
  • Insulation Height: 0.870 inches (22.10mm)
  • Contact Tail Length: 0.154 inches (3.90mm)
  • Material: Polybutylene terephthalate (PBT)
  • ECCN: EAR99
  • HTSUS Code: 8536.69
  • Part Number: MDSTBV2,5/12-GF-5.08,277-8895,1845730-ND,MDSTBV 2,5/12-GF-5.08
  • Compliance: ROHS3 compliant.
