Same model may have multiple batches, images only for reference.

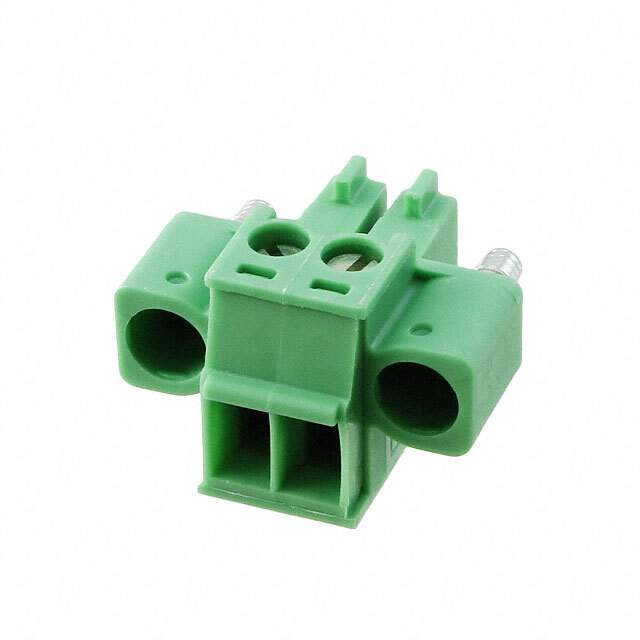

1847055 Real Image
Same model may have multiple batches, images only for reference.

1847055

Part No 1847055
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 2POS STR 3.5MM / 2 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.138" (3.50mm)
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Free Hanging (In-Line)
Current - IEC 8A
Voltage - IEC 320 V
Current - UL 8 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge or Range - mm2 0.14-1.5mm2
Color Green
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Screw Size M2
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length 7mm
Housing Material Polyamide (PA), Nylon
Insulation Height 0.437" (11.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number MC 1,5/ 2-STF-3,5,MC1,5/2-STF-3,5,1847055-ND,277-5826
Standard Package 250
Win Source Part Number 1332164-1847055
Ultra Librarian 3D Model Ultra Librarian 1847055 CAD Model

Description

The Phoenix Contact 1332164-1847055 is a plug-type header designed for easy and secure wire connections.

  • Type: Plug Header
  • Positions per Level: 2
  • Material: Polyamide and Nylon
  • Pitch: 0.138" (3.50mm)
  • Wire Gauge: 14 to 30 AWG
  • Voltage Rating: 320 V
  • Current Rating: 8 A
  • Compliance: RoHS-compliant
  • Packaging: Bulk
