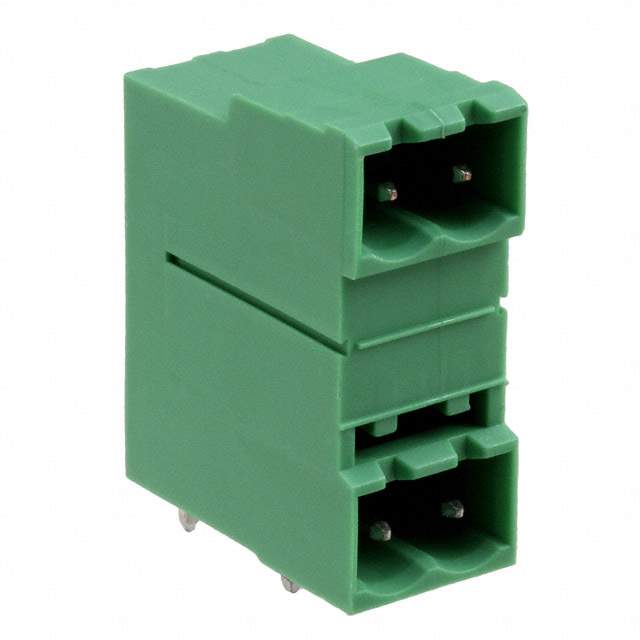

Same model may have multiple batches, images only for reference.

1938948

Name: 1938948
Brand: Phoenix Contact
SKU: 1332250
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1938948
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS 90DEG 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	2
Number of Levels	2
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	10A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	1.122" (28.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	MDSTB2.5/2-G1-5.08,MDSTB 2.5/ 2-G1-5.08,1938948-ND,277-9085
Standard Package	50
Win Source Part Number	1332250-1938948
Ultra Librarian 3D Model	Ultra Librarian 1938948 CAD Model

Description

The Phoenix Contact 1332250-1938948 is a header connector with male pins and shrouded 4 sides.

Positions: 4
Positions per Level: 2
Levels: 2
Pitch: 0.200 inches (5.08mm)
Header Orientation: 90 degrees, right angle
Termination Style: solder
Contact Mating Finish: tin
Housing Material: polyamide (PA) and nylon
Material Flammability Rating: UL94 V-0
Current Rating (IEC): 10A
Voltage Rating (IEC): 630V
Current Rating (UL): 15A
Voltage Rating (UL): 300V
ROHS3 Compliant: yes
Packaging: bulk
Pieces per Standard Package: 50
