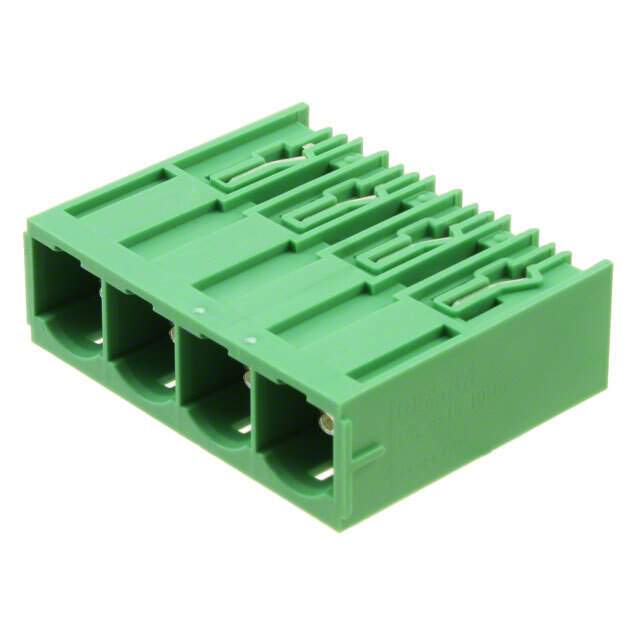

Same model may have multiple batches, images only for reference.

1998959

Name: 1998959
Brand: Phoenix Contact
SKU: 1332251
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1998959
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS 10.16MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.400" (10.16mm) 90°, Right Angle Through Hole
Datasheet	1998959 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.400" (10.16mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	76A
Voltage - IEC	1 kV
Current - UL	66 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Silver
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.157" (4.00mm)
Insulation Height	0.528" (13.40mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	PC 6-16/4-G1-10.16,PC6-16/4-G1-10.16,277-1846
Standard Package	50
Win Source Part Number	1332251-1998959
Ultra Librarian 3D Model	Ultra Librarian 1998959 CAD Model

Description

The Phoenix Contact 1332251-1998959 is a bulk packaged, right angle header with male pins and is shrouded on all four sides.

Positions per Level: four
Levels: single
Pitch: 0.400 inches (10.16mm)
Termination Style: solder
Housing Material: polyamide (PA), nylon
Material Flammability Rating: UL94 V-0
Mounting: through hole mounted
Insulation Height: 0.528 inches (13.40mm)
Current Rating (IEC): 76A
Current Rating (UL): 66A
Voltage Rating (IEC): 1 kV
Voltage Rating (UL): 300V
Contact Mating Finish: silver
Standard Package: 50
ECCN: EAR99
