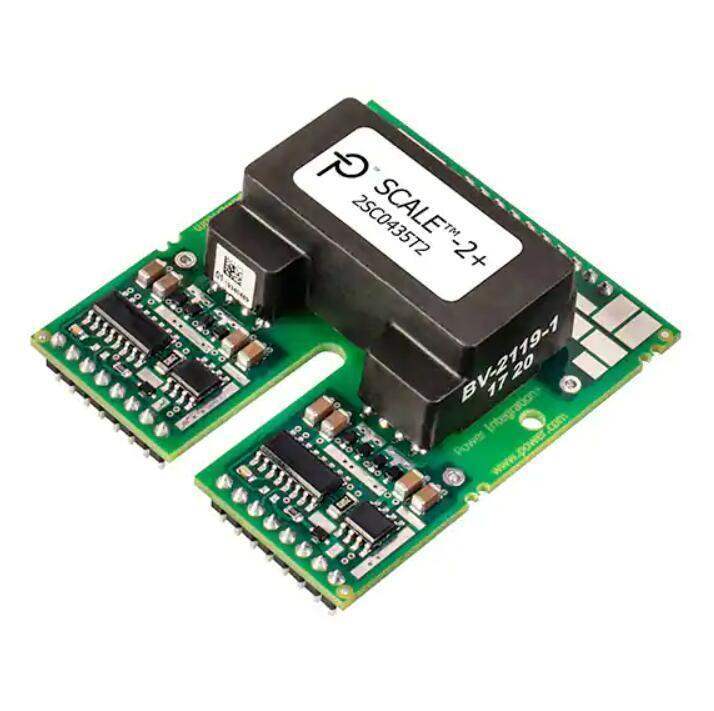

2SC0435T2H0-17Power Integrations
Same model may have multiple batches, images only for reference.

2SC0435T2H0-17

Part No 2SC0435T2H0-17
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HI/LOW SIDE MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196682-2SC0435T2H0-17
Win Source Part Number Cross
Manufacturer Power Integrations
Category Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Series SCALE™-2+
Package Tray
Product Status Active
Driven Configuration High-Side or Low-Side
Channel Type Independent
Gate Type IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply 14.5V ~ 15.5V
Ultra Librarian 3D Model Ultra Librarian 2SC0435T2H0-17 CAD Model

Description

The SCALE™-2+ is a gate driver integrated circuit from Power Integrations.

  • Application: Power Management
  • Gate Type: IGBT, N-Channel, P-Channel MOSFET
  • Voltage - Supply: 14.5V to 15.5V
  • Number of Channels: Independent
  • Configuration: High-Side or Low-Side
  • Package: Tray
  • Lifecycle Status: Active
