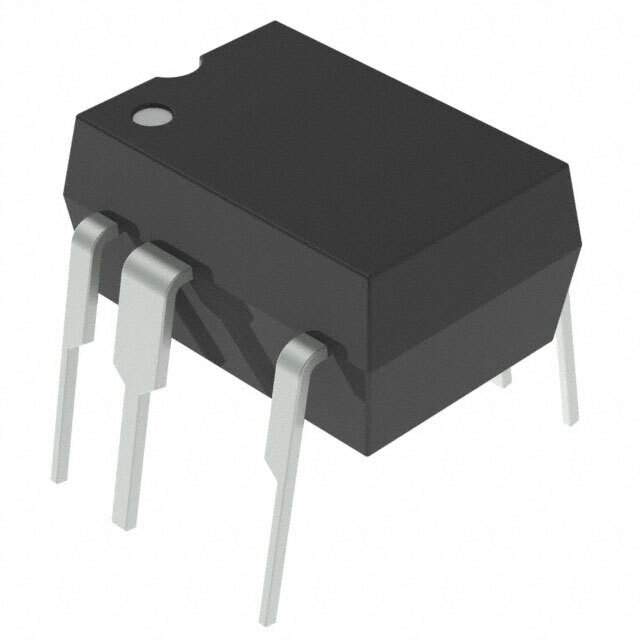

LNK3206P Real Image
Same model may have multiple batches, images only for reference.

LNK3206P

Part No LNK3206P
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWITCH MULT TOP 8DIP / Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz 8-PDIP-C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - AC DC Converters, Offline Switchers
Mfr Power Integrations
Series LinkSwitch™-TN2
Package Tube
Output Isolation Non-Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Buck, Buck-Boost, Flyback
Duty Cycle 69%
Frequency - Switching 66kHz
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -40°C ~ 125°C (TJ)
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package 8-PDIP-C
Mounting Type Through Hole
Base Product Number LNK3206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 596-1543
Standard Package 50
Win Source Part Number 1216309-LNK3206P
Ultra Librarian 3D Model Ultra Librarian LNK3206P CAD Model

Description

The LNK3206P is a LinkSwitch™-TN2 series offline switcher IC from Power Integrations.

  • Package: 8-DIP (0.300", 7.62mm), 7 leads
  • Isolation: Non-isolated
  • Voltage Breakdown: 725V
  • Topology: Buck, buck-boost, flyback
  • Duty Cycle: 69%
  • Switching Frequency: 66kHz
  • Fault Protection: Current limiting, over-temperature, over-voltage, and short circuit protection
  • Mounting Type: Through-hole
  • Operating Temperature: -40°C to 125°C (TJ)
  • Application: PMIC-AC DC converters and offline switchers
