Same model may have multiple batches, images only for reference.

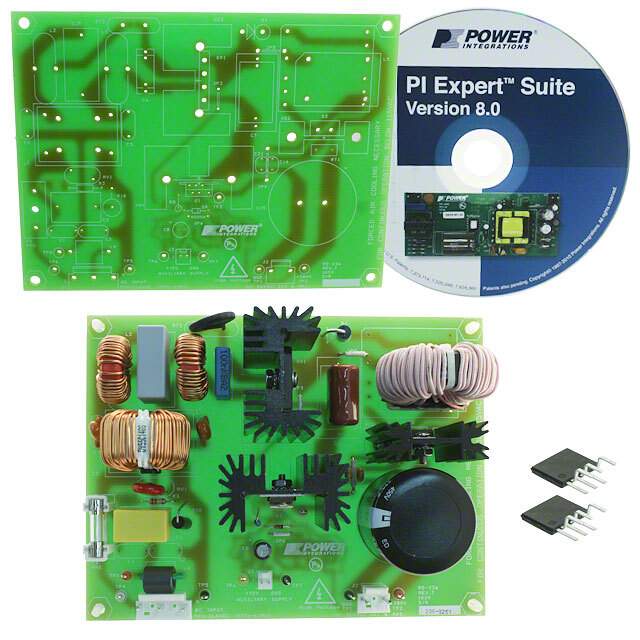

RDK-236 Real Image
Same model may have multiple batches, images only for reference.

RDK-236

Part No RDK-236
Manufacturer Power Integrations
Catalog Evaluation and Demonstration Boards and Kits
Description KIT REF DESIGN PFS714EG
Datasheet
RDK-236 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Power Integrations
Series HiperPFS
Part Status Obsolete(EOL)
Main Purpose Power Management, Power Factor Correction
Embedded No
Utilized IC / Part PFS714EG
Primary Attributes 347W, 370 ~ 390V Out, 90 ~ 264VAC In
Supplied Contents Board(s)
Win Source Part Number 791732-RDK-236
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RDK-236 CAD Model

Description

The Power Integrations RDK-236 is a development board kit that is designed for power management and power factor correction. It has a primary attribute of 347W and can output 370-390V while accepting an input voltage of 90-264VAC.

  • Product Type: Development Board Kit
  • Primary Attribute: 347W
  • Output Voltage: 370-390V
  • Input Voltage: 90-264VAC
  • IC: PFS714EG
  • Embedded: No
  • Status: Obsolete (EOL)
