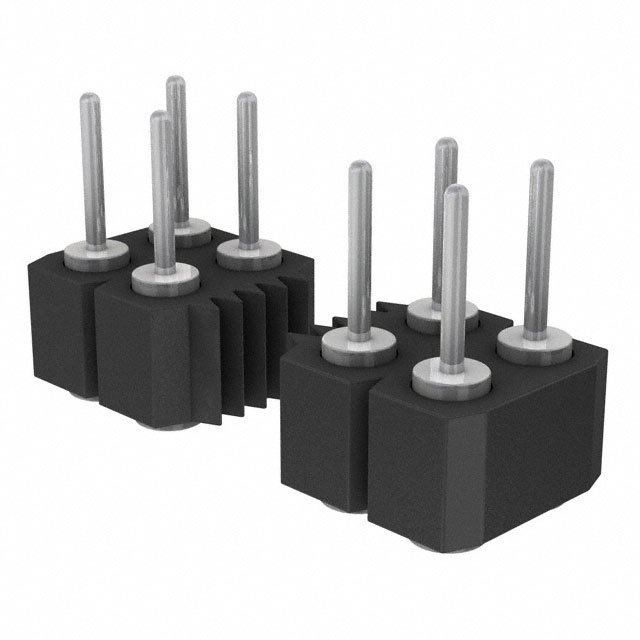

Same model may have multiple batches, images only for reference.

450-80-248-01-899101

Name: 450-80-248-01-899101
Brand: Preci-Dip
SKU: 760010
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	450-80-248-01-899101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN HDR 48POS 2.54MM SMD
Datasheet	450-80-248-01-899101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Preci-Dip
Series	450
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.141" (3.60mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Voltage Rating	150VDC
Win Source Part Number	760010-450-80-248-01-899101
Popularity	Medium
Supply and Demand Status	Limited
Family Name	450
ECCN	EAR99
Country of Origin	Switzerland
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 450-80-248-01-899101 CAD Model

Alternative Products

Description

The Preci-Dip 450 series header connector from Preci-Dip is a two-row, unshrouded board-to-board connector.

Pitch: 0.100 inches (2.54mm)
Positions: 48
Contact Type: Male pins
Contact Material: Brass
Voltage Rating: 150VDC
Current Rating: 3A
Operating Temperature Range: -55°C to 125°C
Mounting Type: Surface-mounting
Fastening Type: Push-pull
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Alternative Parts: 450-10-248-00-006101, 450-80-248-00-006101, 450-V3-248-00-006101
Country of Origin: Switzerland
Estimated EOL Date: 2028
