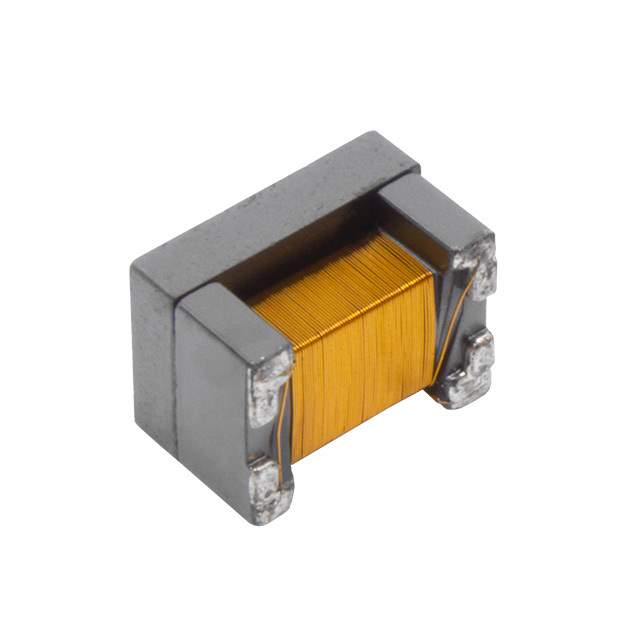

AE2002 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Network
Package Tape & Reel
Number of Lines 2
Inductance @ Frequency 160 µH @ 100 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 5Ohm
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.116" (2.95mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1840-1044-1,1840-1044-2,1840-1044-6
Standard Package 2,500
Win Source Part Number 1018344-AE2002
Ultra Librarian 3D Model Ultra Librarian AE2002 CAD Model

Description

The 1018344-AE2002 is a common mode choke manufactured by Pulse Electronics Network.

  • Suitable for: Use in various applications, including filters
  • Package: Tape & reel
  • Mounting Option: SMD (SMT)
  • Voltage Rating - DC: 60V
  • Current Rating (Max): 100mA
  • Standard Package: 2,500
  • Height (Max): 0.116" (2.95mm)
  • Number of Lines: 2
  • Inductance @ Frequency: 160 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 5 Ohm
  • Package/Case: Horizontal, 4 PC pad
  • Operating Temperature Range: -40°C to 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8548.00.0000
  • Other Names: 1840-1044-1, 1840-1044-2, and 1840-1044-6
  • Approval Agency: -
