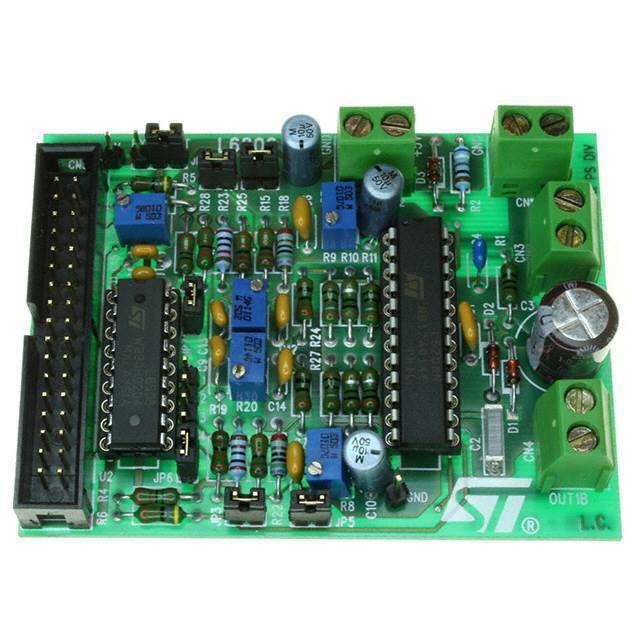

The EVAL6206N from STMicroelectronics is a high-performance evaluation board designed for the L6206N, a dual full-bridge driver integrated circuit. This product is specifically tailored for driving bipolar stepper motors or bidirectional control of two DC motors, making it an ideal solution for a wide range of applications including robotics, automation systems, and 3D printers.

Key Features


• Integrated Dual Full-Bridge Driver: The EVAL6206N integrates the L6206N chip, capable of operating two full-bridge drivers independently or combined for driving a bipolar stepper motor.

• High Voltage and Current Ratings: With an operating voltage range from 8 V to 52 V and output current up to 2.8 A per channel, this board can handle a variety of demanding motor applications.

• Advanced Protection Features: The board includes overcurrent protection, thermal shutdown, and under-voltage lockout, ensuring safe and reliable operation under different conditions.

• Configurable Parameters: Users can adjust various parameters such as decay mode selection, enabling flexible control over motor speed and torque.

• Easy-to-use Interface: The EVAL6206N features a user-friendly interface with logic input pins for easy control signal integration.


Applications

The versatility of the EVAL6206N makes it suitable for a broad range of applications. Its ability to precisely control motor movements is particularly useful in:


• Automated machinery

• Robotics and automated guided vehicles (AGVs)

• 3D printers and CNC machines

• Office automation equipment

• Medical devices


Design and Development Support

STMicroelectronics provides comprehensive support for the EVAL6206N, including detailed documentation, reference designs, and software tools to facilitate rapid development and prototyping. Engineers can leverage these resources to reduce time-to-market for their motor control solutions.

Overall, the EVAL6206N evaluation board is a robust, flexible, and user-friendly platform for motor control applications, backed by STMicroelectronics' proven expertise in semiconductor solutions.
