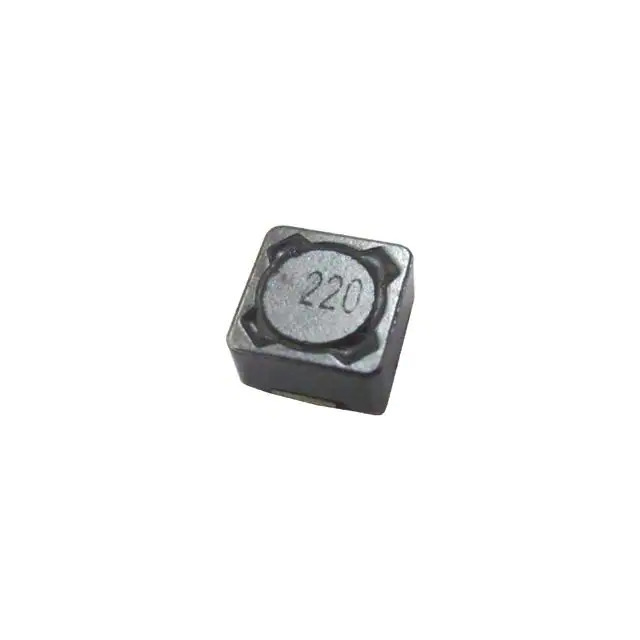

Same model may have multiple batches, images only for reference.
BPSC00101140220M00 Pulse
Same model may have multiple batches, images only for reference.

BPSC00101140220M00

Part No BPSC00101140220M00
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 80 MOHM SMD
Datasheet
BPSC00101140220M00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series BPSC
Package Tape & Reel
Product Status Active
Type -
Material - Core -
Inductance 22 µH
Tolerance ±20%
Current - Saturation (Isat) 2.6A
Shielding Shielded
DC Resistance (DCR) 80mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370315-BPSC00101140220M00
Ultra Librarian 3D Model Ultra Librarian BPSC00101140220M00 CAD Model

Description

The 1370315-BPSC00101140220M00 is a fixed inductor manufactured by Pulse Electronics.

  • Series: BPSC
  • Package: Nonstandard
  • Mounting Type: Surface mount
  • Temperature Range: -40°C to 105°C
  • Height: 0.157" (4.00mm)
  • Size: 0.413" L x 0.406" W (10.50mm x 10.30mm)
  • Inductance: 22μH
  • Maximum Current Rating: 2.6A
  • DC Resistance (DCR): 80mOhm
  • REACH: Unaffected
  • ECCN: EAR99
  • Applications: Electronic circuits to store and release energy
