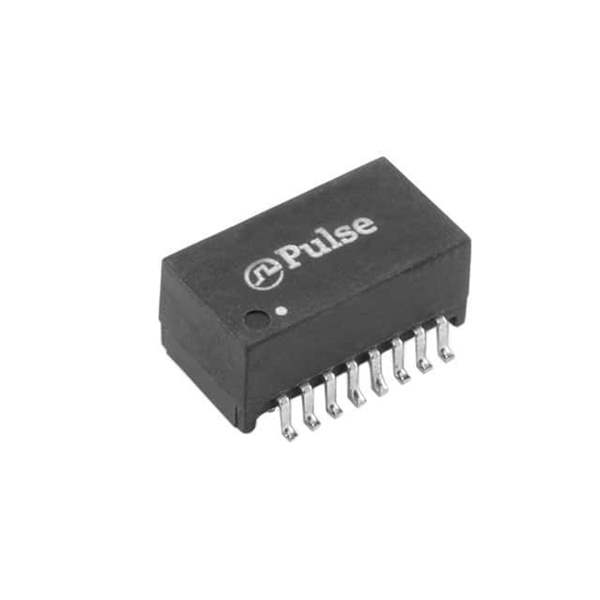

E2457NLT
Same model may have multiple batches, images only for reference.

E2457NLT

Part No E2457NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR ISOL 10BASE-T 1:1.41 SMD
Datasheet
E2457NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 140µH, 140µH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.241" (6.12mm)
Weight 0.03 oz (0.85 g)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 869986-E2457NLT
Ultra Librarian 3D Model Ultra Librarian E2457NLT CAD Model

Description

The E2457NLT is a pulse transformer from Pulse.

  • Package: Tape & Reel
  • Size: 0.500" L x 0.358" W (12.70mm x 9.09mm)
  • Mounting: Surface Mount
  • Applications: Isolation and Data Interface
  • Inductance: 140μH and 140μH
  • Height: 0.241" (6.12mm) seated
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package Quantity: 600 pcs
  • Weight: 0.03 oz (0.85 g)
  • Status: Active
