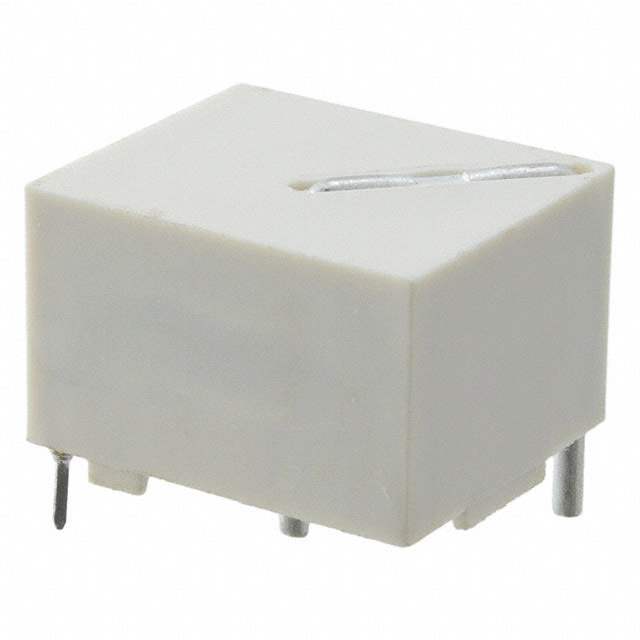

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers >Current Sense Transformers
Manufacturer Pulse Electronics
Packaging Tube
Part Status Active
Frequency Range 500kHz Max
Type Invasive
Inductance 4.7 mH
ET (Volt-Time) 175VµS
DC Resistance (DCR) 500mOhm Max
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian FIS105NL CAD Model

Description

  • Current sense transformers provide output feedback to the pulse control circuitry allowing low-cost regulation of switch-mode power supplies
  • Fully encapsulated construction, Reinforced Insulation.
  • Isolation primary to secondary: 4000V AC
  • 25A maximum primary current, 500kHz maximum frequency
  • Applications: switch-mode power supplies, lighting, switch controls
