Products specifications

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 090949-H1102NL
Family Name H1102
Introduction Date March 07, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H1102NL CAD Model

Description

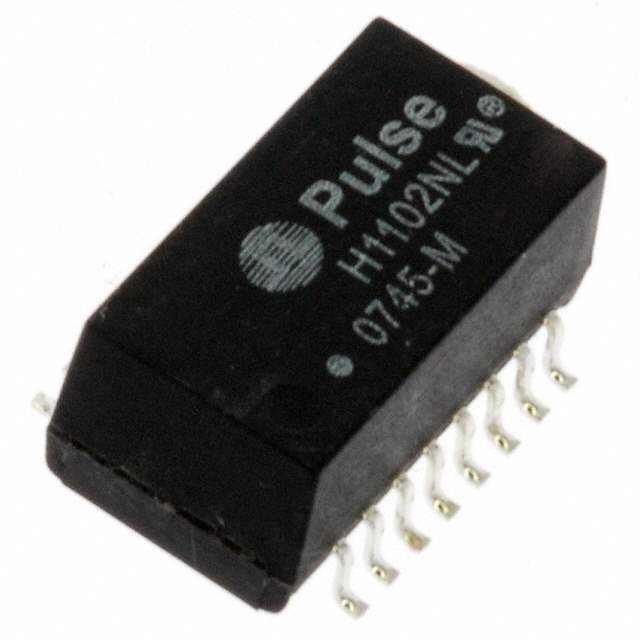

H1102NL from Pulse is a pulse transformer used in signal isolation and interface circuitry where controlled pulse transfer, impedance matching, and reliable communication performance are important. Designers typically evaluate parts in this category for networking, telecom, industrial communications, and other data-path applications that depend on transformer coupling between ICs and external lines. As a Pulse device, H1102NL is commonly considered when engineers need a recognized source for magnetic components in compact electronic designs. Because exact technical details were not provided here, engineers should confirm electrical characteristics, package information, and supported standards in the official Pulse datasheet before design-in. Lifecycle status for H1102NL is currently listed as unknown, so supply continuity should be reviewed before committing to new production. RoHS compliance information is also not available in this input and should be verified directly with the manufacturer or authorized distribution sources, especially for regulated or export-sensitive programs.
