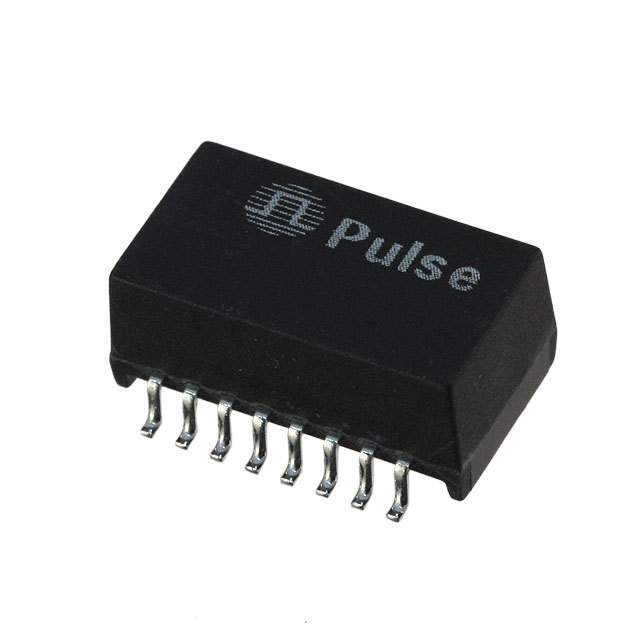

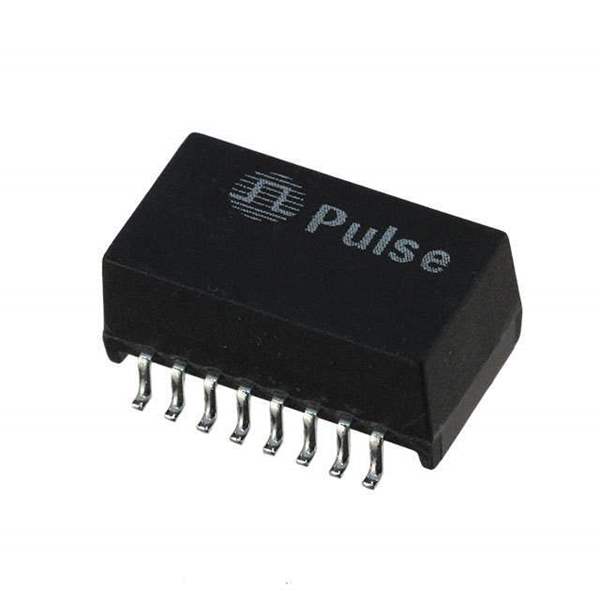

H1183NL Pulse
Same model may have multiple batches, images only for reference.

H1183NL

Part No H1183NL
Manufacturer Pulse
Catalog Pulse Transformers
Description RoHS peak reflow temperature rating: 245C | XFRMR MAGNETIC 1PORT 1:1 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Maximum) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.03 oz (0.85g)
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1178129-H1183NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1183NL CAD Model

Description

The H1183NL is an isolation and data interface transformer manufactured by Pulse Electronics Network.

  • Product Name: H1183NL
  • Application: LAN, 10/100 Base-T, and other networking systems
  • Maximum Operating Temperature: 70°C
  • Weight: 0.03 oz (0.85g)
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 40
