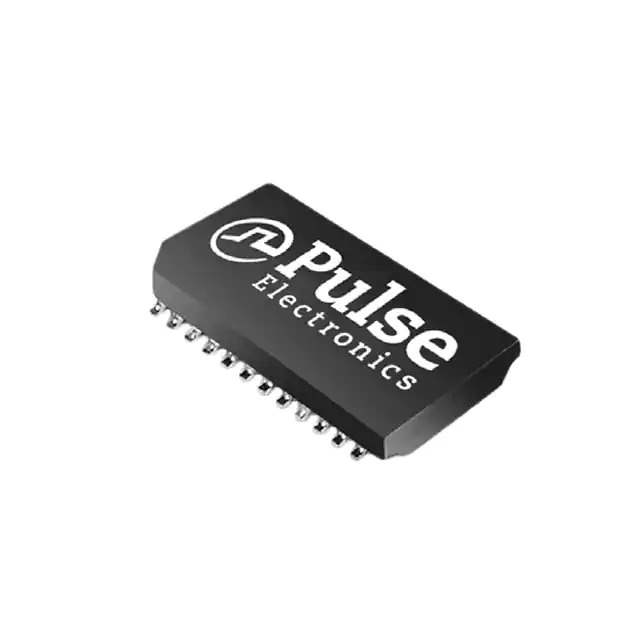

HX5149NL

Part No HX5149NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 360UH / 360μH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
HX5149NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 360µH
Mounting Type Surface Mount
Size / Dimension 0.700" L x 0.390" W (17.78mm x 9.91mm)
Height - Seated (Max) 0.126" (3.20mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 920695-HX5149NL
Ultra Librarian 3D Model Ultra Librarian HX5149NL CAD Model

Description

The 920695-HX5149NL is a pulse transformer designed for LAN 10/100/1000 Base-T applications.

  • Package: Tube
  • Size: 0.700" L x 0.390" W
  • Inductance: 360µH
  • Seated Height: 0.126"
  • Standard Package: 25 pieces
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8504.31.2000
