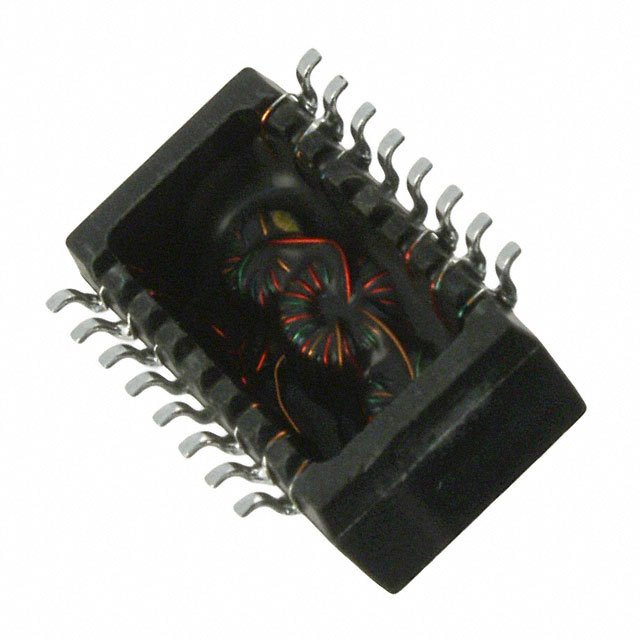

S553-5999-86-F Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

S553-5999-86-F

Part No S553-5999-86-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN 10B-T SMD / 110μH LAN 10 Base-T Pulse Transformer 1CT:2CT Transmitter, 1CT:1CT Receiver Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN 10 Base-T
Inductance 110µH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.285" W (12.70mm x 7.24mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 900 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 307339-S553-5999-86-F
Ultra Librarian 3D Model Ultra Librarian S553-5999-86-F CAD Model

Description

The 307339-S553-5999-86-F is a pulse transformer designed for use in LAN 10 Base-T transformers.

  • Type: Pulse Transformer
  • Application: LAN 10 Base-T Transformers
  • Size: 0.500" L x 0.285" W (12.70mm x 7.24mm)
  • Height: 0.225" (5.72mm) seated
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • Manufacturer: Bel Fuse Inc.
  • Package: 900 pcs
  • ECCN: EAR99 compliant
  • REACH: Unaffected
