Same model may have multiple batches, images only for reference.

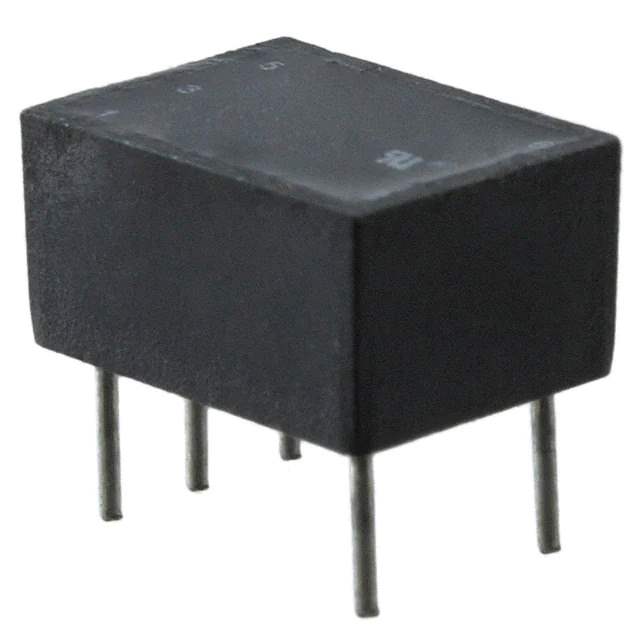

PE-65779NL Real Image
Same model may have multiple batches, images only for reference.

PE-65779NL

Part No PE-65779NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR T3/DS3/E3/STS-1 1:4CT T/H / 150μH T3/E3 (Single) Pulse Transformer 1:4CT Through Hole
Datasheet
PE-65779NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type T3/E3 (Single)
Inductance 150µH
Mounting Type Through Hole
Size / Dimension 0.299" L x 0.402" W (7.60mm x 10.20mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.14 oz (3.99 g)
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 930228-PE-65779NL
Ultra Librarian 3D Model Ultra Librarian PE-65779NL CAD Model

Description

The 930228-PE-65779NL is a pulse transformer designed for T3/E3 applications.

  • Manufacturer: Pulse
  • Size: 0.299" L x 0.402" W (7.60mm x 10.20mm)
  • Mounting Type: Through-Hole
  • Inductance: 150µH
  • Seated Height: 0.250" (6.35mm)
  • Temperature Range: 0°C to 70°C
  • Status: active
