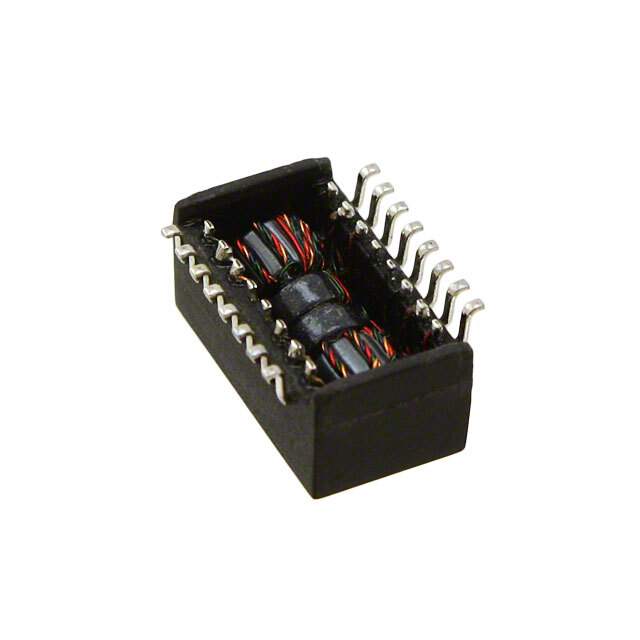

HX1188NL Real Image HX1188NL real image4644
HX1188NL Real Image HX1188NL real image4644
Same model may have multiple batches, images only for reference.

HX1188NL

Part No HX1188NL
Manufacturer Pulse
Catalog Pulse Transformers
Description Telecom Transformer 2(1CT:1CT) 1.5Ohm Prim. DCR 1.5Ohm Sec. DCR 16 Terminal Gull Wing SMD Automotive / XFRMR MAGNETIC 1PORT 1:1 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.03 oz (0.85g)
Win Source Part Number 088565-HX1188NL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HX1188
Introduction Date October 08, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian HX1188NL CAD Model

Description

The Pulse Electronics Corporation 156801 is an isolation and data interface transformer type with a height of 0.245 inches and a weight of 0.03 oz. The supply and demand status for this product is balanced. The HX1188 transformer family name has alternative parts such as HX1188FNL and HX1188FNLT. The product was introduced in the market on October 8, 2013 and has an estimated EOL date of 2031. This product is compliant with halogen-free standards and is manufactured in China. The ECCN for this product is EAR99.
