Same model may have multiple batches, images only for reference.

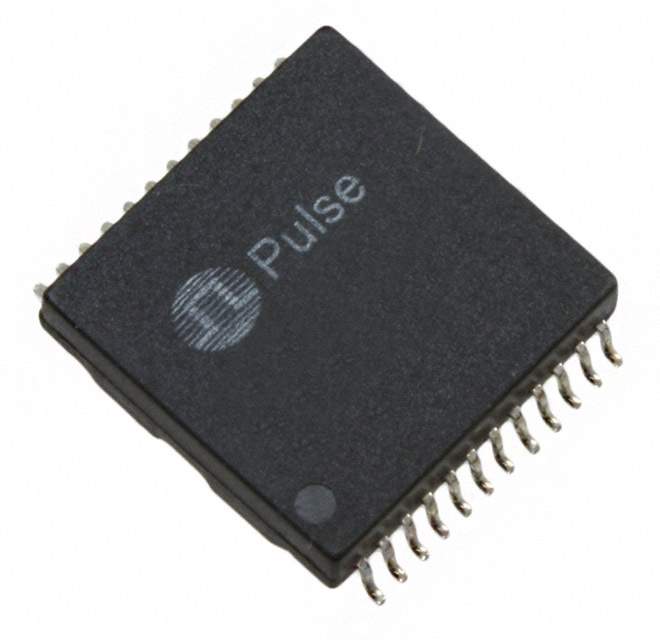

HX1294NL Real Image
Same model may have multiple batches, images only for reference.

HX1294NL

Part No HX1294NL
Manufacturer Pulse
Catalog Pulse Transformers
Description 10/100BASE-TX DUAL PORT TRANSFORMER MODULES | MODULE XFRMR LAN 10/100 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type LAN 10/100 Base-T
Inductance 325μH
Mounting Style SMD
Parts Dimension 0.538" L x 0.599" W (13.67mm x 15.21mm)
Height - Seated (Maximum) 0.241" (6.12mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.06 oz (1.71g)
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 1182652-HX1294NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX1294NL CAD Model

Description

The HX1294NL is a LAN transformer from Pulse Electronics Network.

  • Application: 10/100 Base-T
  • Inductance: 325μH
  • Size: 0.538" L x 0.599" W (13.67mm x 15.21mm)
  • Weight: 0.06 oz (1.71g)
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • Manufacturer Pack Quantity: 35
