Same model may have multiple batches, images only for reference.

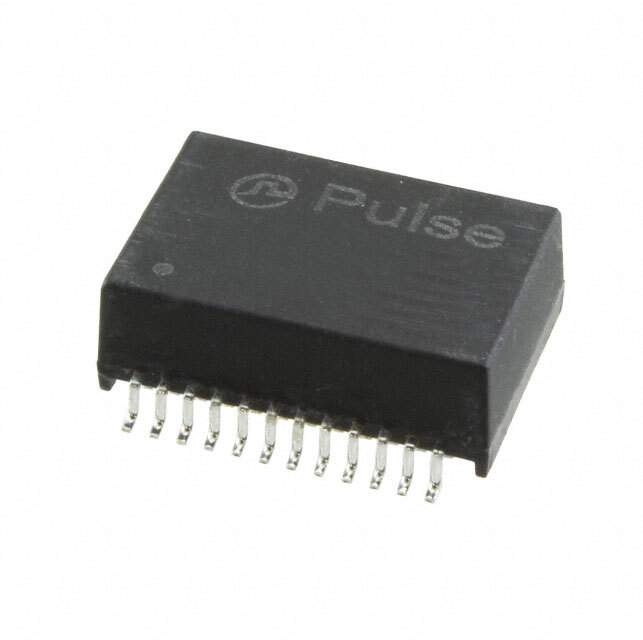

HX6096NL Real Image
Same model may have multiple batches, images only for reference.

HX6096NL

Part No HX6096NL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER 1000BASET / Telecom Transformer 2(1:1) 0.3Ohm Prim. DCR 0.3Ohm Sec. DCR 24 Terminal Gull Wing SMD
Datasheet
HX6096NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Series *
Packaging Tube
Dimension 0.717" L x 0.480" W (18.20mm x 12.20mm)
Height - Seated (Maximum) 0.270" (6.85mm)
Win Source Part Number 776263-HX6096NL
Popularity Medium
Supply and Demand Status Limited
Family Name HX
Introduction Date September 01, 2009
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian HX6096NL CAD Model

Description

The Pulse Electronics Corporation HX6096NL transformer is a high-quality component used in a variety of electronic applications.

  • Series: HX
  • Package: Tube
  • Length: 0.717 inches
  • Width: 0.480 inches
  • Seated Height: 0.270 inches
  • Manufacturer Country: China
  • ECCN: EAR99
  • Estimated EOL Date: 2028
  • Supply and Demand Status: Limited
