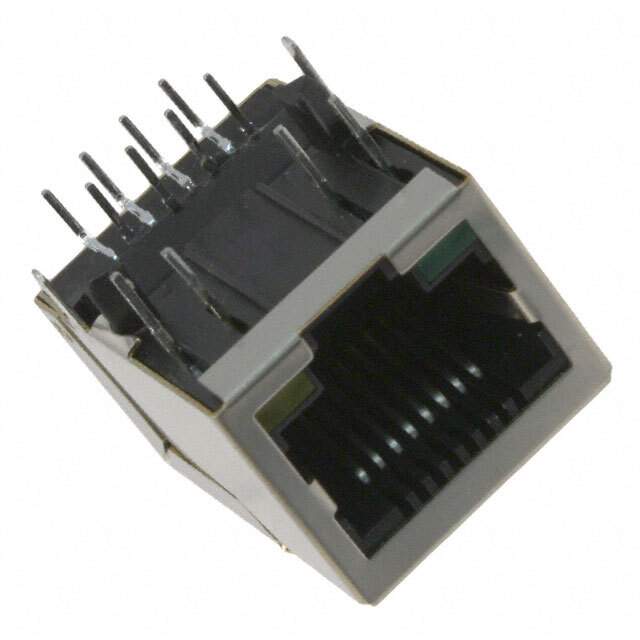

J00-0045NL Real Image
Same model may have multiple batches, images only for reference.

J00-0045NL

Part No J00-0045NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 100 BASE-TX
Datasheet
J00-0045NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Features Board Guide
Contact Finish Gold
Temperature Range - Operating 0°C to 70°C
Contact Finish Thickness 15μin (0.38μm)
Shield Material Brass
Housing Material Thermoplastic
Win Source Part Number 1049990-J00-0045NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian J00-0045NL CAD Model

Description

The Pulse Electronics Corporation connector with Win Source Part Number 1049990-J00-0045NL is an RJ45 type connector with a 90° Angle (Right) orientation.

  • Orientation: 90° Angle (Right)
  • Mounting Type: Through-Hole
  • Height Above Board: 0.545" (13.84mm)
  • Ports: Single
  • Applications: 10/100 Base-TX and AutoMDIX
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Housing Material: Thermoplastic
