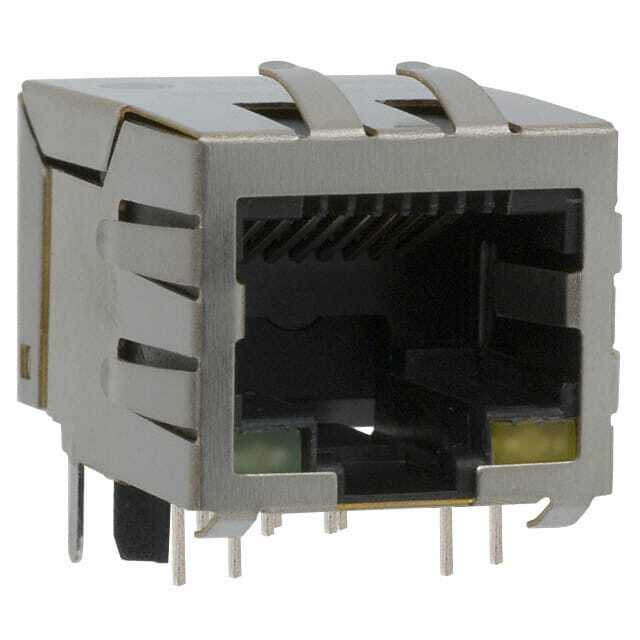

J0006D21BNL

Part No J0006D21BNL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB
Datasheet
J0006D21BNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse
Series PULSEJACK™ J0
Package Tube
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848703-J0006D21BNL
Ultra Librarian 3D Model Ultra Librarian J0006D21BNL CAD Model

Description

The PULSEJACK™ J0 848703-J0006D21BNL is a modular connector jack with magnetics, designed for use in electronic devices. PULSEJACK™ J0 848703-J0006D21BNL is manufactured by Pulse Electronics Network.

  • Connector Type: Modular Jack with Magnetics
  • Style: Jack
  • Number of Ports: 1
  • Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Internal Switch(s): None
  • Mounting Type: Through Hole
  • Orientation: 90° Angle (Right)
  • Termination: Solder
  • Shielding: Shielded, EMI Finger
  • LED Color: Green-Yellow
  • Features: Board Guide, AutoMDIX
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Housing Material: Thermoplastic
  • Operating Temperature: 0°C ~ 70°C
  • ECCN: EAR99
  • Standard Package: 25 Pieces
  • Base: 10/100 Base-TX
