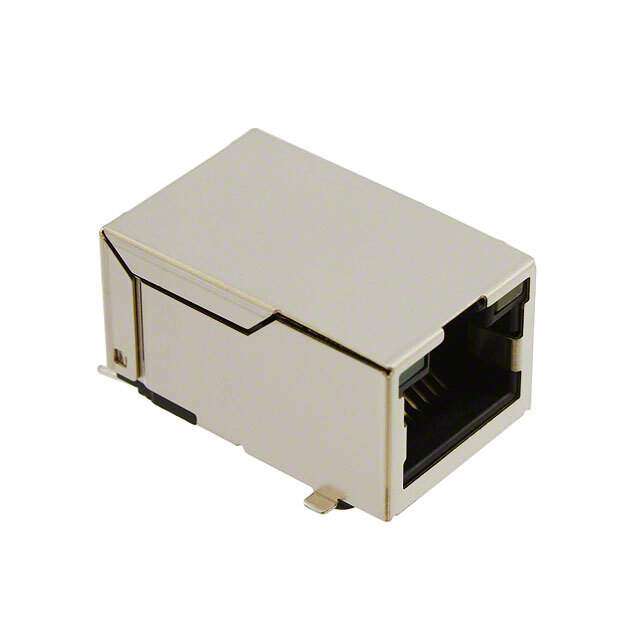

J3026G01DNL

Name: J3026G01DNL
Brand: Pulse
SKU: 1225614
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	J3026G01DNL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN JACK 1PORT 100 BASE-TX SMD / 1 Port RJ45Surface Mount 10/100 Base-TX
Datasheet	J3026G01DNL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr	Pulse Electronics Network
Series	PULSEJACK™ J3
Package	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-TX
Mounting	SMD (SMT)
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.536" (13.61mm)
LED Color	Green - Yellow
Number of Cores per Jack	5
Shielding	Shielded
Features	Board Guide
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Thermoplastic
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	J3026G01DNL-ND,553-1853
Standard Package	45
Win Source Part Number	1225614-J3026G01DNL
Ultra Librarian 3D Model	Ultra Librarian J3026G01DNL CAD Model

Alternative Products

Description

The PULSEJACK™ J3 series connector is a shielded RJ45 jack with a 90-degree angle (right) orientation.

Port: Single
Cores per Jack: 5
Application: 10/100 Base-TX
Housing Material: Thermoplastic
Height Above Board: 0.536 inches (13.61mm)
Contact Material: Phosphor Bronze
Gold Finish Thickness: 30.0μin (0.76μm)
Mounting: SMD (SMT)
Package: Tray
LED Color: Green-Yellow
Shield Material: Brass
Operating Temperature: 0°C to 70°C
HTSUS Code: 8536.69.4040
Manufacturer: Pulse Electronics Network
