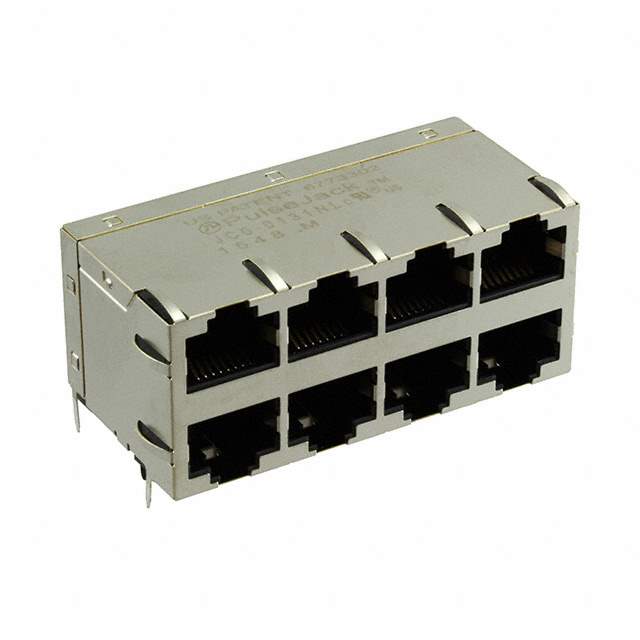

Same model may have multiple batches, images only for reference.

JC0-0133NL

Get a Quote

Part No	JC0-0133NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN JACK 16PORT 1000 BASE-T PCB / 16 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet	JC0-0133NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer	Pulse Electronics
Packaging	Tray
Connector Type	RJ45
Number of Ports	16
Number of Rows	2
Applications	10/100/1000 Base-T, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	1.005" (25.53mm)
LED Color	Does Not Contain LED
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up and Down
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Thermoplastic
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	8
Win Source Part Number	1333877-JC0-0133NL
Ultra Librarian 3D Model	Ultra Librarian JC0-0133NL CAD Model

Alternative Products

Description

The JC0-0133NL is a modular connector jack with magnetics manufactured by Pulse Electronics.

Shielding: Shielded, EMI finger
Orientation: 90° angle (right)
Applications: 10/100/1000 Base-T, AutoMDIX
Ports: 16
Package: Tray
Connector Type: RJ45
Rows: 2
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Contact Material: Phosphor bronze
Housing Material: Thermoplastic
Height Above Board: 1.005" (25.53mm)
RoHS Compliant: Yes
ECCN: EAR99
