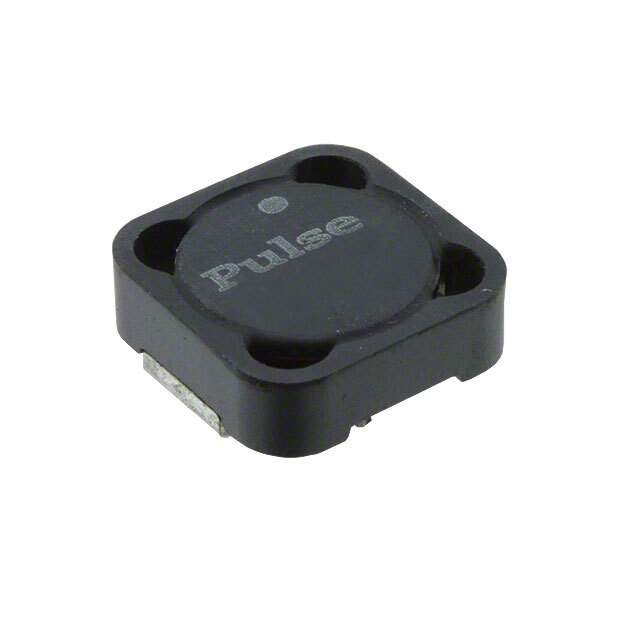

Same model may have multiple batches, images only for reference.

P1168.104NLT

Name: P1168.104NLT
Brand: Pulse
SKU: 1018135
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1168.104NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.2A 270MOHM SMD / 100 µH Shielded Wirewound Inductor 1.2 A 270mOhm Max Nonstandard
Datasheet	P1168.104NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	P1168NL
Package	Tape & Reel
Type	Wirewound
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.2A
Shielding	Shielded
DC Resistance (DCR)	270mOhm Max
Frequency - Self Resonant	6MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.177" (4.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-3804-1,P1168.104NLT-ND,553-3804-6,553-3804-2
Standard Package	500
Win Source Part Number	1018135-P1168.104NLT
Ultra Librarian 3D Model	Ultra Librarian P1168.104NLT CAD Model

Alternative Products

Description

The 1018135-P1168.104NLT is a fixed inductor designed for use in electronic circuits. Bold the product name (e.g., BAV99S,135 → 1018135-P1168.104NLT) and manufacturer (e.g., Nexperia USA Inc. → Pulse Electronics Power).

Type: Fixed Inductor
Mounting Type: Surface Mount
Height: 0.177 inches
Series: P1168NL
Packaging: Tape and Reel
Shielding: Shielded
Inductance: 100 μH
DC Resistance: 270mOhm Max
Operating Temperature: -40°C to 130°C
Dimensions: 0.482 inches in length and 0.482 inches in width
ECCN: EAR99
