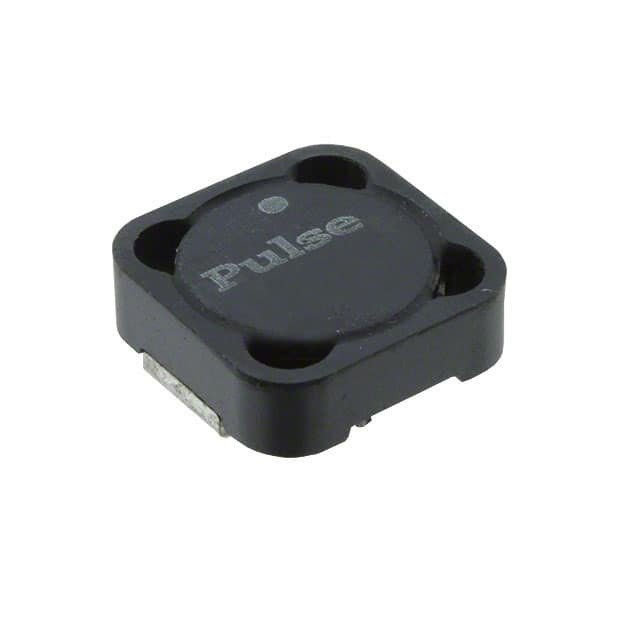

P1168.154NLT Pulse
Same model may have multiple batches, images only for reference.

P1168.154NLT

Part No P1168.154NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 150UH 1A 456 MOHM SMD / 150 µH Shielded Wirewound Inductor 1 A 456mOhm Max Nonstandard
Datasheet
P1168.154NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series P1168NL
Package Tape & Reel (TR)
Type Wirewound
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 456mOhm Max
Frequency - Self Resonant 4.9MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500
Win Source Part Number 1000509-P1168.154NLT
Ultra Librarian 3D Model Ultra Librarian P1168.154NLT CAD Model

Description

The P1168NL series wirewound inductor from Pulse Electronics Power is an ideal solution for applications that require a shielded inductor.

  • Inductor Type: Shielded
  • Inductance: 150 µH
  • DC Resistance (DCR): 456mOhm Max
  • Current Rating: 1 A
  • Tolerance: ±20%
  • Frequency Self-Resonant: 4.9MHz
  • Package: Tape & Reel (TR)
  • Seated Height: 0.177" (4.50mm)
  • Package/Case: Non-Standard
  • Operating Temperature: -40°C ~ 130°C
