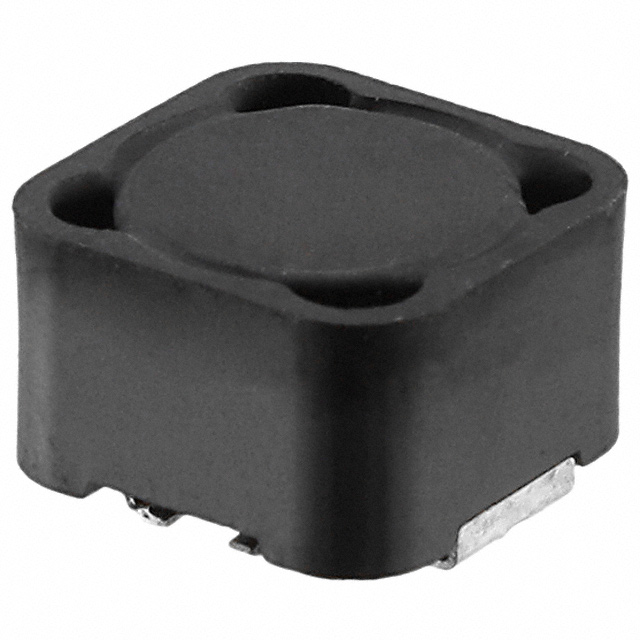

P1172.223NLT Pulse
Same model may have multiple batches, images only for reference.

P1172.223NLT

Part No P1172.223NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 3.8A 42 MOHM SMD
Datasheet
P1172.223NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 3.8A
Current - Saturation 3.8A
DC Resistance (DCR) 42 mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C to 130°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.315" (8.00mm)
Win Source Part Number 026230-P1172.223NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian P1172.223NLT CAD Model

Description

The Pulse Electronics Corporation 026230-P1172.223NLT is a wirewound inductor with a current rating of 3.8A and an inductance of 22μH.

  • Height: 0.315" (8.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 42 mOhm max
  • Temperature Range: -40°C to 130°C
  • Supply and Demand: Limited
