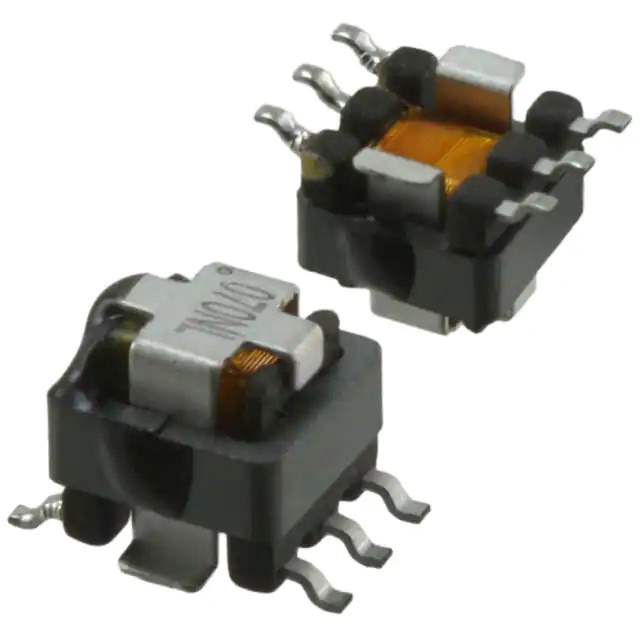

PA1005.100NL Real Image
Same model may have multiple batches, images only for reference.

PA1005.100NL

Part No PA1005.100NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 20A SMD
Datasheet
PA1005.100NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Pulse
Package Tray
Product Status Active
Frequency Range 50kHz ~ 1MHz
Type Invasive
Current Rating (Amps) 20 A
Inductance 2 mH
DC Resistance (DCR) 0.75mOhm Primary, 5.5Ohm Secondary
Mounting Type Surface Mount
Size / Dimension 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) 0.217" (5.50mm)
Termination Style Gull Wing
Weight 0.014 oz (0.4 g)
Standard Package 120 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 846609-PA1005.100NL
Ultra Librarian 3D Model Ultra Librarian PA1005.100NL CAD Model

Description

The 846609-PA1005.100NL is a current sense transformer designed for invasive applications. Bold the product name (e.g., BAV99S,135 → 846609-PA1005.100NL) and manufacturer (e.g., Nexperia USA Inc. → Pulse).

  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Size: 0.284" L x 0.330" W (7.21mm x 8.38mm)
  • Height: 0.217" (5.50mm)
  • Inductance: 2 mH
  • Frequency Range: 50kHz to 1MHz
  • Current Rating: 20A
  • Primary DC Resistance (DCR): 0.75mOhm
  • Secondary DC Resistance (DCR): 5.5Ohm
  • Status: Active
