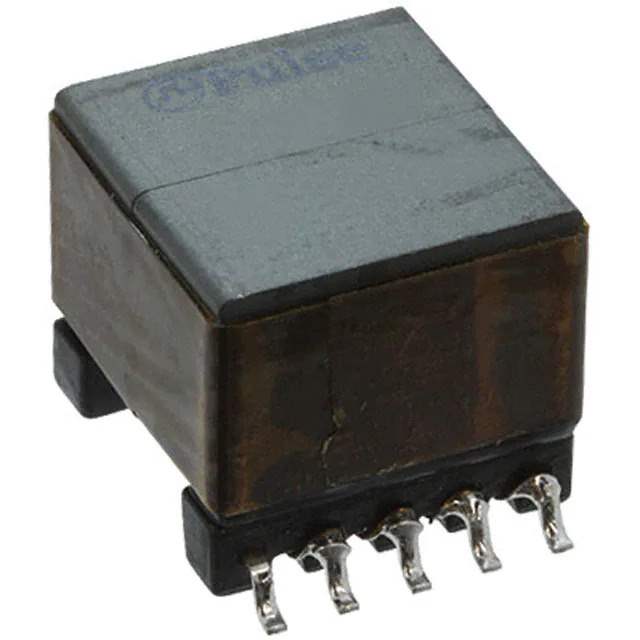

PA1136NL Real Image
Same model may have multiple batches, images only for reference.

PA1136NL

Part No PA1136NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 126.7UH
Datasheet
PA1136NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Inductance 126.7µH
Mounting Type Surface Mount
Size / Dimension 0.551" L x 0.516" W (14.00mm x 13.11mm)
Height - Seated (Max) 0.485" (12.32mm)
Temperature Range - Operating -40°C ~ 125°C
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 929937-PA1136NL
Ultra Librarian 3D Model Ultra Librarian PA1136NL CAD Model

Description

The 857695 is a pulse transformer used in transformers in the category of Transformers - Pulse Transformers.

  • Category: Transformers - Pulse Transformers
  • Packaging: Tray
  • Dimensions: 0.551" L x 0.516" W (14.00mm x 13.11mm)
  • Transformer Type: Not specified
  • Inductance: 126.7µH
  • Seated Height: 0.485" (12.32mm)
  • Standard Package: 60 pieces
  • Mounting: Surface Mountable
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
  • Status: Active
