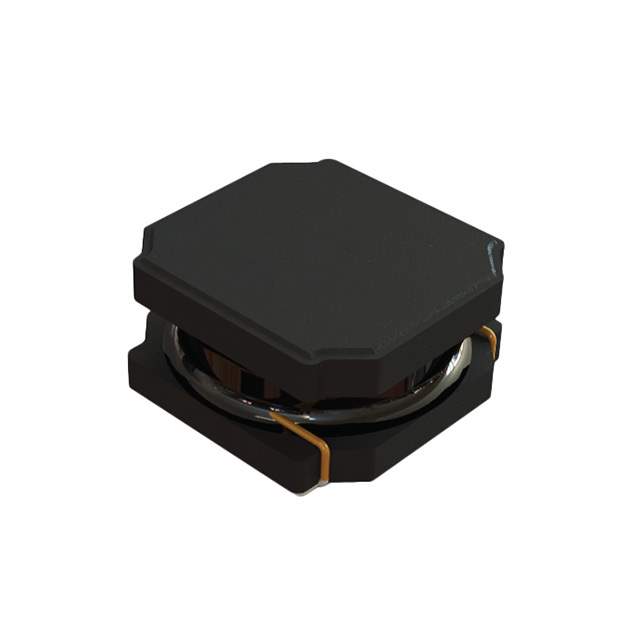

Same model may have multiple batches, images only for reference.

PA4332.472NLT

Name: PA4332.472NLT
Brand: Pulse
SKU: 1327613
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4332.472NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 2.85A 108MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 2.85 A 108mOhm Max Nonstandard
Datasheet	PA4332.472NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	2.85 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	108mOhm Max
Frequency - Self Resonant	17MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.165" L x 0.165" W (4.20mm x 4.20mm)
Height - Seated (Max)	0.079" (2.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	553-3292-1,553-3292-2,-PA4332.472NLT,553-3292-6
Standard Package	3,000
Win Source Part Number	1327613-PA4332.472NLT
Ultra Librarian 3D Model	Ultra Librarian PA4332.472NLT CAD Model

Alternative Products

Description

The Pulse Electronics fixed inductor with a drum core and wirewound design is a shielded component with a size of 0.165" L x 0.165" W (4.20mm x 4.20mm).

Inductance: 4.7 µH
Height: 0.079" (2.00mm)
DC Resistance (DCR): 108mOhm max
Current Rating: 2.85A
Mounting Type: Surface Mount
Tolerance: ±20%
Material: Iron core
Frequency Self-Resonant: 17MHz
Current Saturation: 4A
Operating temperature range: -40°C to 125°C
Case/Package: Nonstandard
RoHS compliant: Yes
Package: 3,000
