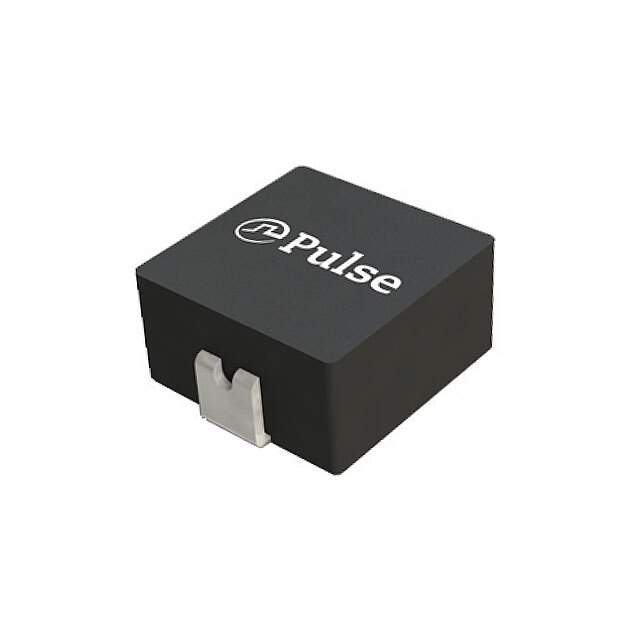

Same model may have multiple batches, images only for reference.

PA4340.471NLT

Name: PA4340.471NLT
Brand: Pulse
SKU: 1327648
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4340.471NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 470NH 12A 7.4 MOHM SMD / 470 nH Shielded Molded Inductor 12 A 7.4mOhm Max Nonstandard
Datasheet	PA4340.471NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Molded
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	12 A
Current - Saturation (Isat)	16A
Shielding	Shielded
DC Resistance (DCR)	7.4mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.236" L x 0.213" W (6.00mm x 5.40mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	553-2989-2,553-2989-1,553-2989-6,-PA4340.471NLT
Standard Package	2,000
Win Source Part Number	1327648-PA4340.471NLT
Ultra Librarian 3D Model	Ultra Librarian PA4340.471NLT CAD Model

Alternative Products

Description

The fixed inductor from Pulse Electronics is a molded type inductor that is shielded.

Size/Dimension: 0.236" L x 0.213" W (6.00mm x 5.40mm)
Inductance: 470 nH
Height (Max): 0.118" (3.00mm)
Standard Package: 2,000
Mounting Type: Surface Mount
Tolerance: ±20%
DC Resistance (DCR): 7.4mOhm Max
AEC-Q200 Rated: Yes
