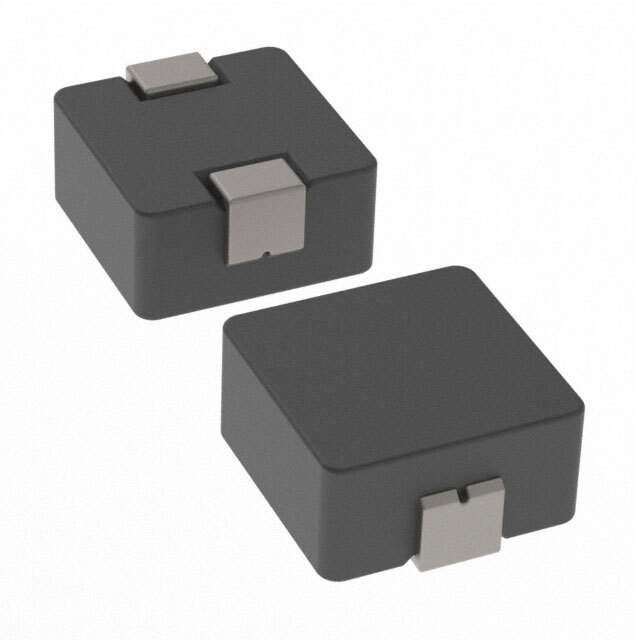

PA4343.822ANLT

Name: PA4343.822ANLT
Brand: Pulse
SKU: 1192836
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4343.822ANLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 12.5A 13.8 MOHM / 8.2 µH Shielded Molded Inductor 12.5 A 13.8mOhm Max Nonstandard
Datasheet	PA4343.822ANLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA4343.XXXANLT
Package	Tape & Reel
Type	Molded
Inductance	8.2 µH
Tolerance	±20%
Current Rating (Amps)	12.5 A
Current - Saturation (Isat)	17A
Shielding	Shielded
DC Resistance (DCR)	13.8mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.496" W (13.50mm x 12.60mm)
Height - Seated (Max)	0.256" (6.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	553-4028-2,553-4028-1,553-4028-6
Standard Package	500
Win Source Part Number	1192836-PA4343.822ANLT
Ultra Librarian 3D Model	Ultra Librarian PA4343.822ANLT CAD Model

Alternative Products

Description

The PA4343.XXXANLT series inductors from Pulse Electronics Power are fixed inductors with an inductance of 8.2µH and a ±20% tolerance.

Inductance: 8.2µH
Tolerance: ±20%
AEC-Q200 Qualified: Yes
Maximum Current Rating: 12.5A
Type: Shielded
Package/Case: Non-Standard
DC Resistance (DCR): 13.8mOhm maximum
Height - Seated (Max): 0.256" (6.50mm)
Operating Temperature: -55°C to 155°C
