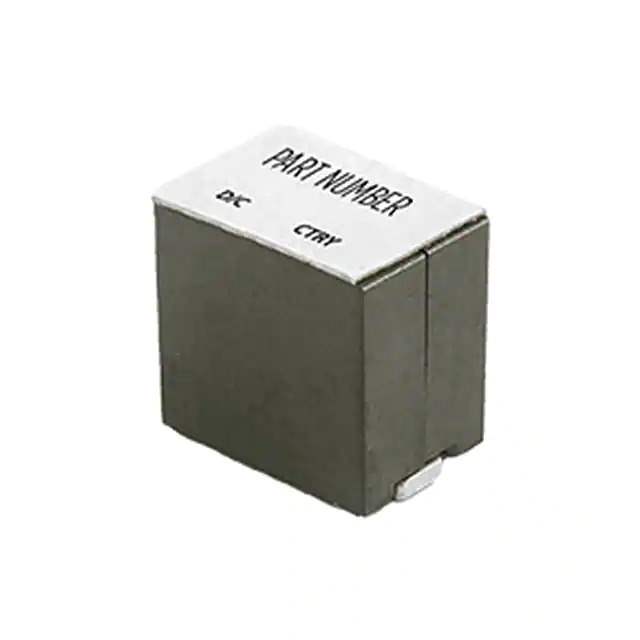

Same model may have multiple batches, images only for reference.

PA4390.151HLT

Name: PA4390.151HLT
Brand: Pulse
SKU: 848998
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4390.151HLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 150NH 68A 0.185MOHM SM
Datasheet	PA4390.151HLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PA4390.XXXHLT
Package	Tape & Reel
Product Status	Active
Inductance	150 nH
Tolerance	±15%
Current Rating (Amps)	68 A
Current - Saturation (Isat)	73A
Shielding	Shielded
DC Resistance (DCR)	0.185mOhm
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.276" W (10.00mm x 7.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Standard Package	300 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	848998-PA4390.151HLT
Ultra Librarian 3D Model	Ultra Librarian PA4390.151HLT CAD Model

Alternative Products

Description

The Fixed Inductor with Win Source Part Number 848998-PA4390.151HLT is a shielded inductor designed for various applications. It comes in a tape and reel package and has a size of 0.394" L x 0.276" W (10.00mm x 7.00mm).

Package: Tape and reel
Size: 0.394" L x 0.276" W (10.00mm x 7.00mm)
Inductance: 150nH
Tolerance: ±15%
Seated Height (Max): 0.394" (10.00mm)
Temperature Range: -40°C to 130°C
MSL Level: 1 (unlimited)
REACH: Unaffected
ECCN: EAR99
HTSUS Code: 8504.50.8000
